Jasic EVO MIG 500 Multi Process Separate 400V Inverter Package (Model EM-500S)
Jasic EVO MIG 500 Multi Process Separate 400V Inverter Package (Model EM-500S)
Jasic EVO MIG 500 Multi Process Separate 400V Inverter Package (Model EM-500S)

Jasic EVO MIG 500 Multi Process Separate 400V Inverter Package (Model EM-500S)

Stock Code: FAW00042335
Manufacturer Part No: ZXEM-500S
Available for Despatch in 1 working days.
£2,882.60 (exc VAT) per Each
Quantity: - +

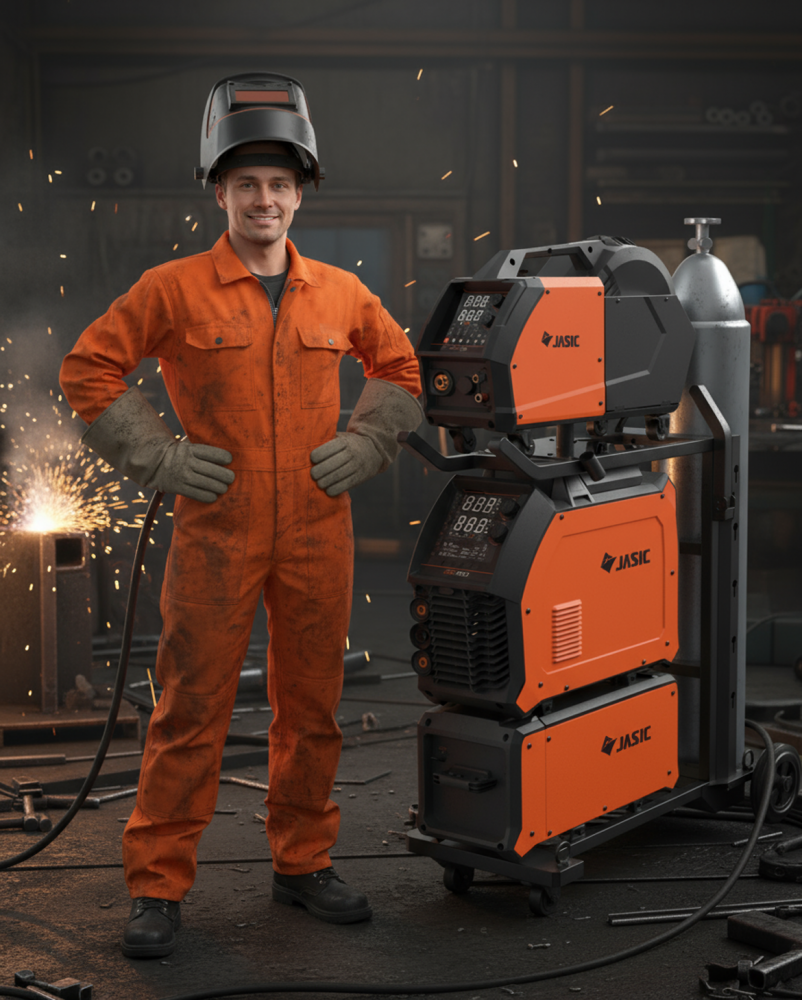

Jasic EVO MIG 500S Multi Process Separate Inverter Package 400V - Model No: EM-500S

Heavy duty 500 amp three phase digital welding system with separate wire feed unit and advanced inverter control for large scale fabrication and high output industrial applications.

Product Overview

The Jasic EVO MIG 500S is a high capacity industrial welding system designed for heavy fabrication, structural work, and production environments. Featuring a powerful three phase inverter power source and a separate wire feed unit, it delivers exceptional arc stability, high output performance, and reliable welding across demanding applications.

Built with advanced digital control technology similar to the EVO 350S platform, the 500S extends capability to higher amperage ranges, making it suitable for thicker materials and prolonged welding cycles. The system supports MIG/MAG, MMA, and DC Lift TIG processes, offering maximum flexibility for industrial users. *(Note: Detailed specifications follow the EVO range design architecture as seen across EVO MIG systems.)*

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi process capability
  • 500A output for heavy structural and industrial welding
  • Separate 4 roll wire feed unit for large fabrication work
  • Advanced digital inverter control (ARM / DSP platform)
  • Full synergic and manual welding modes

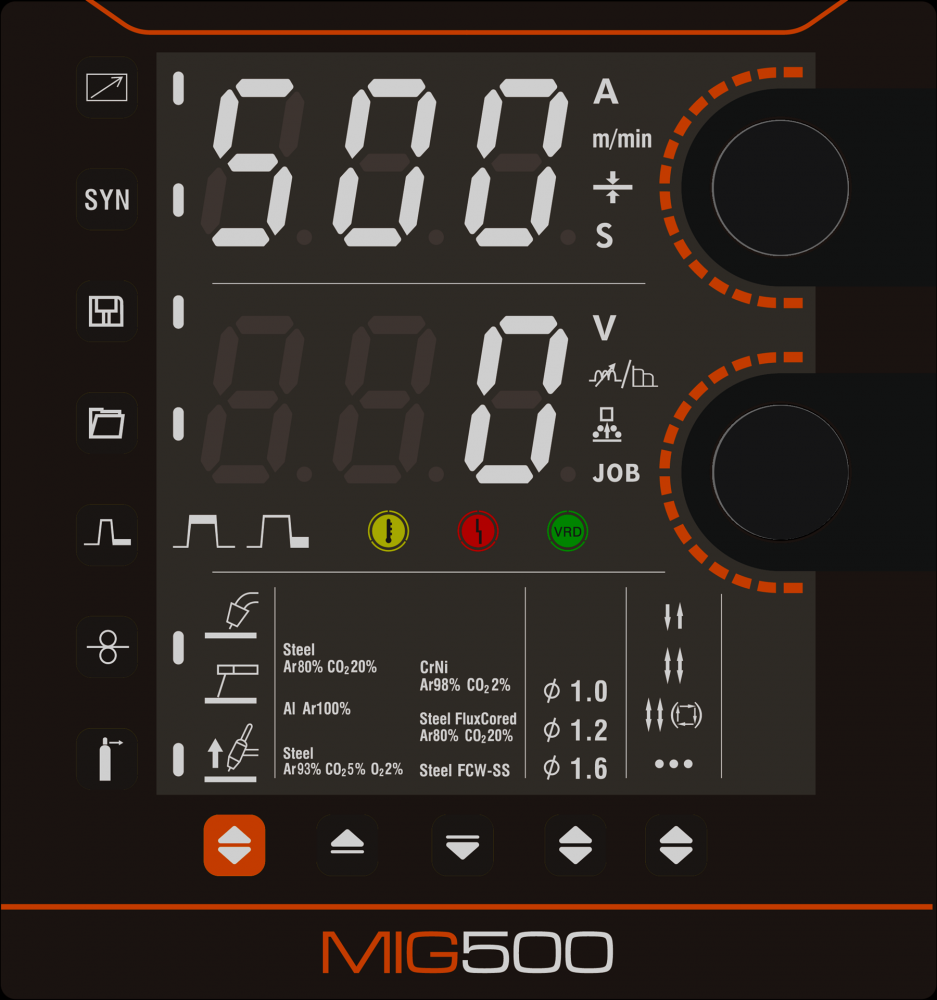

  • ClearVision digital display with intuitive parameter control
  • Enhanced dual drive wire feed system for consistent delivery
  • High duty cycle for prolonged welding operations
  • Program memory storage for repeatable jobs
  • 2T / 4T / Cycle / Spot trigger modes
  • Adjustable inductance and crater fill control
  • On demand cooling and energy saving auto sleep mode
  • Remote control compatibility (wired, wireless, app)
  • USB connectivity for updates
  • IP23S protection for harsh industrial environments

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. up to 500A
  • Duty Cycle: high duty industrial rating (model dependent)
  • Wire Feed System: dual drive 4 roll separate unit
  • Wire Feed Speed: approx. up to 20–24 m/min
  • Wire Spool Size: D300
  • Protection Class: IP23S


What’s Included

  • EVO MIG 500S inverter power source
  • Separate 4 roll wire feed unit
  • 5m Interconnecting cable set
  • MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty industrial trolley

Optional Accessories

  • Water cooling unit for high duty cycle operation
  • Extended interconnecting leads (10m / 15m / 20m)
  • Push pull torch or spool gun
  • Remote control systems / mobile connectivity
BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
