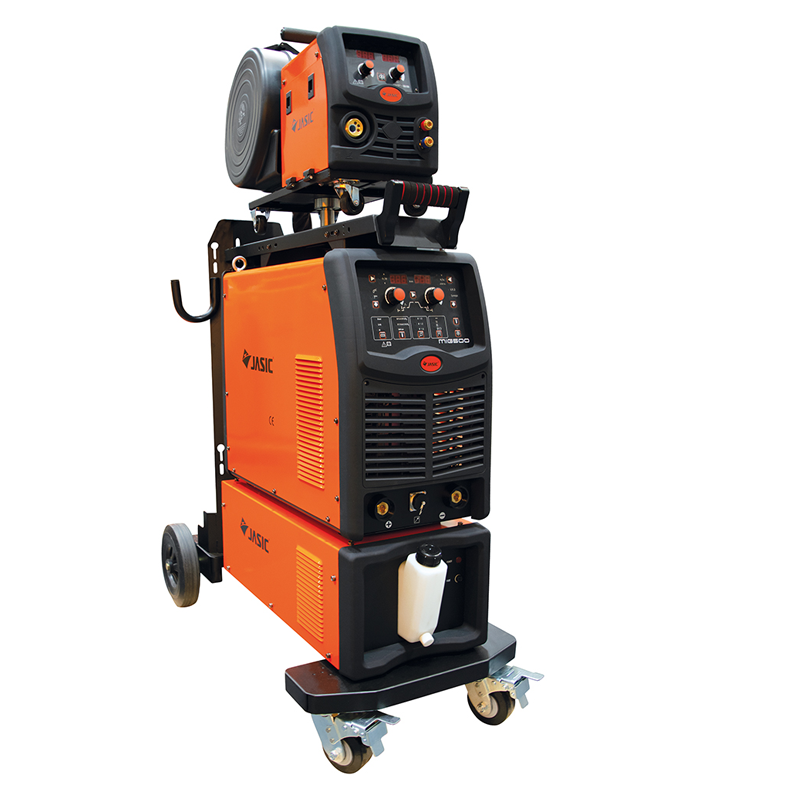

Jasic PRO MIG 500 Synergic Multi Process Separate Inverter Package with Water Cooler and 10M Interconnecting Cables 400V - Model No: JM-500SYN-10M

High output 500 amp three phase synergic welding system with separate wire feed unit, water cooling and 10 metre interconnecting cables for heavy fabrication and extended working flexibility.

Product Overview

The Jasic PRO MIG 500 Synergic inverter is a powerful industrial welding system designed for heavy fabrication, structural steelwork and production environments. Delivering up to 500A output, it provides strong and reliable welding performance across demanding applications.

This configuration includes 10 metre interconnecting cables, allowing greater distance between the power source and wire feeder. This improves access for large assemblies and fabrication bays, making it ideal for workshops requiring flexibility alongside high output capability.

Supplied as a complete industrial package including separate wire feed unit and integrated water cooling system, the MIG 500 is built for continuous high duty operation, ensuring consistent performance during long weld runs and heavy production use.

Key Features

  • MIG/MAG and MMA multi process capability
  • High output 500A welding capacity
  • 10m interconnecting cables for extended working range
  • Synergic control for simplified parameter setup
  • Heavy duty industrial inverter design
  • Stable arc performance with strong penetration
  • 4 roll wire feed system for smooth wire delivery
  • Water cooling unit for high duty cycle welding
  • Reliable performance for long weld runs
  • Designed for thick materials and structural work
  • Heavy duty trolley with full size gas bottle support

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: up to 500A
  • Process: MIG/MAG / MMA
  • Control: Synergic
  • Wire Feed System: 4 roll drive unit
  • Wire Spool Size: D300
  • Cooling: Water cooled system included
  • System Configuration: Inverter + feeder + 10m interconnection leads
  • Application: Heavy fabrication / structural steel / industrial production


What’s Included

  • MIG 500 synergic inverter power source
  • 4 roll wire feed unit
  • Water cooling unit
  • 10m interconnecting cable set
  • MIG welding torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty industrial trolley

Optional Accessories

  • Extended interconnecting cables (15m / 20m)
  • Push pull torch or spool gun
  • Remote control systems

Warranty: Includes a 5 year manufacturer’s warranty (subject to registration).

BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
