Jasic LS-20000F Fibre Laser Welding System 230V

High performance 2000W fibre laser welding system delivering maximum speed, deeper penetration, and precision welding for advanced fabrication and production environments.

Product Overview

The Jasic LS-20000F is a powerful next generation handheld fibre laser welding system designed for demanding industrial applications. Using advanced continuous wave laser technology, it produces clean, high strength welds with minimal heat input, reducing distortion and eliminating the need for extensive post weld finishing.

Delivering significantly higher output than the LS-15000F, this 2000W system provides deeper penetration and increased travel speeds, making it ideal for production environments and heavier fabrication work. Its intuitive touchscreen interface and compact, mobile design ensure ease of use across workshop and site based applications.

Key Features

  • 2000W fibre laser welding system for maximum performance
  • Significantly faster than MIG and TIG welding processes
  • Deeper penetration for thicker materials
  • Continuous wave laser for consistent weld quality
  • Minimal heat affected zone (HAZ) reduces distortion

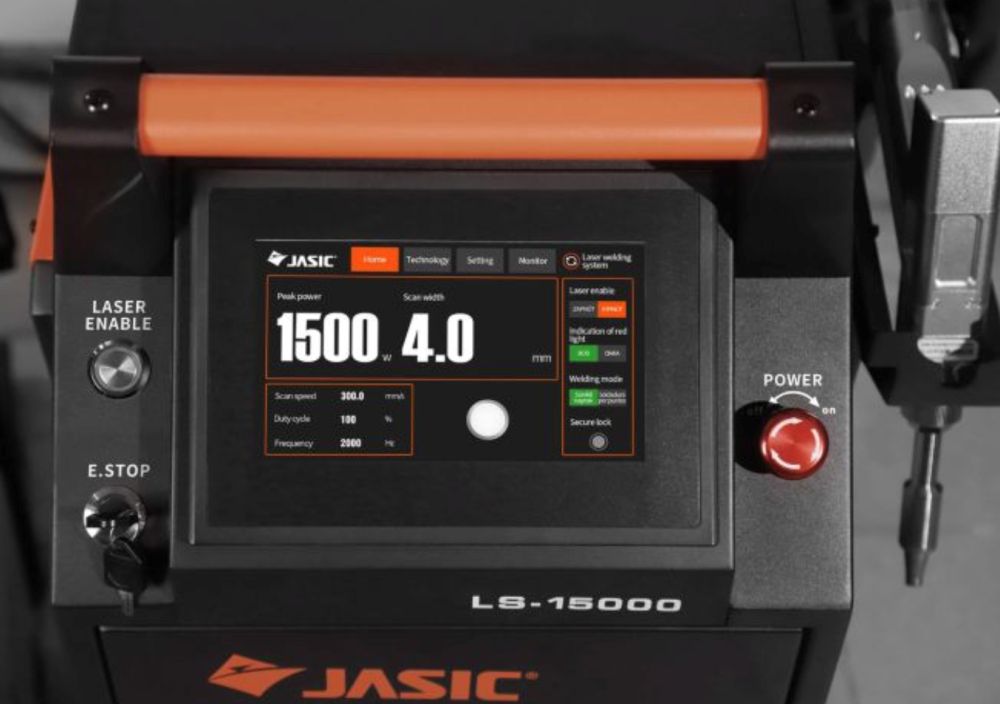

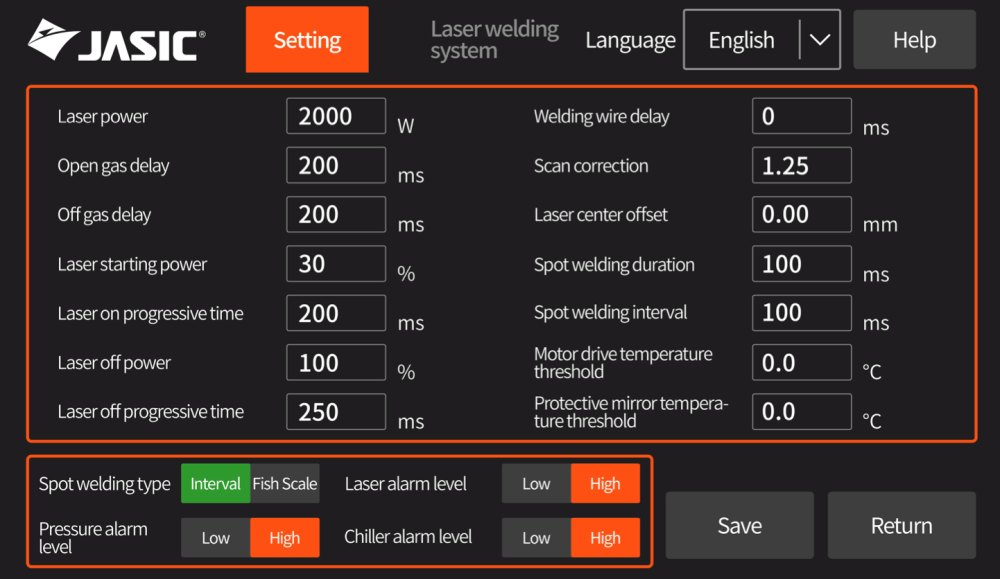

  • Colour touchscreen control panel for easy setup and control
  • Advanced wire feed system (single or dual options available)
  • Water cooled system for high duty cycle operation
  • Spot and continuous welding modes
  • Ability to store multiple job parameters
  • Compact, mobile design for workshop or site use
  • Low maintenance, long life laser source
  • Model No: LS-20000F

Technical Specifications

  • Input Voltage: 1 Phase, AC 230V, 50Hz
  • Laser Power: 2000W
  • Laser Type: Continuous Wave Fibre Laser
  • Wavelength: approx. 1080 nm
  • Electro Optical Efficiency: ≥40%
  • Cooling Method: Water cooled
  • Welding Thickness: Up to approx. 6mm (material dependent)
  • Fibre Cable Length: Typically 6m
  • Shielding Gas: Argon / Nitrogen


What’s Included

  • LS-20000F Laser Welding Power Source

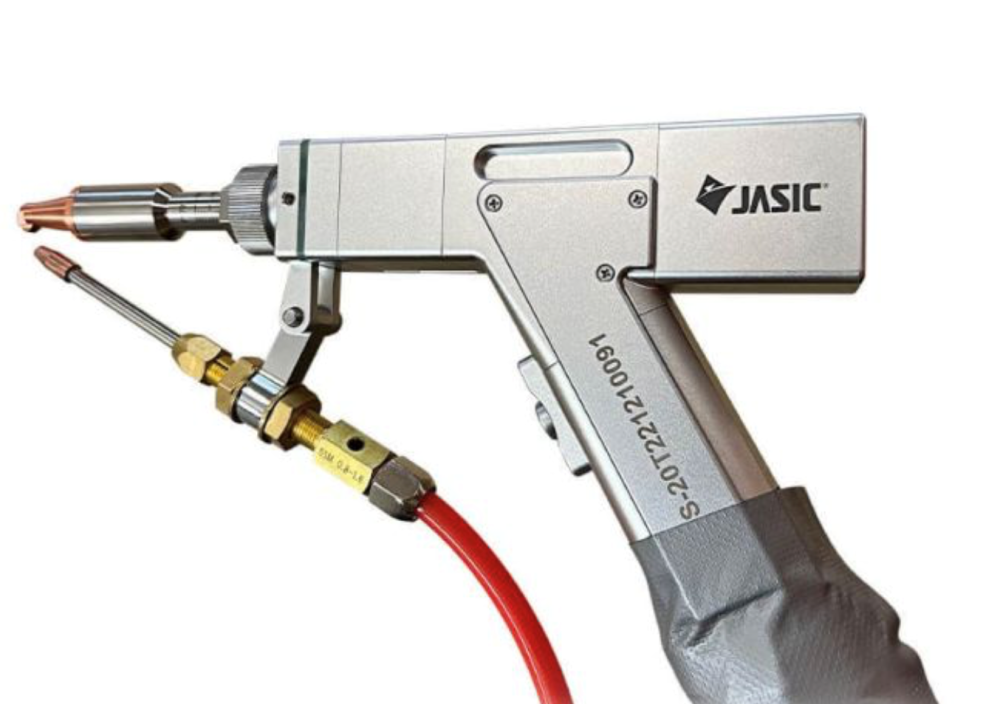

  • Handheld laser welding torch
  • Wire feed unit (single or dual depending on package)
  • Integrated cooling system
  • Operating manual

Optional Accessories

  • Dual wire feeder for high deposition applications
  • Replacement lenses and consumables
  • Laser safety PPE and protective equipment
  • Laser safety enclosure systems
