Jasic EVO MIG 500S Multi Process Separate Inverter Package with 10m Interconnecting Cables 400V - Model No: EM-500S-10M

Maximum output 500 amp three phase industrial welding system with separate wire feed unit and 10 metre interconnecting cables for heavy duty fabrication and extended working flexibility.

Product Overview

The Jasic EVO MIG 500S is a high capacity industrial welding system designed for structural steel, heavy fabrication, and production environments requiring maximum output and reliability. Featuring a powerful 3 phase inverter power source with a separate 4 roll wire feed unit, it delivers consistent arc stability and high performance welding across demanding applications.

This configuration includes 10 metre interconnecting leads, allowing greater separation between the power source and wire feeder. This makes it ideal for large work areas, fabrication bays, and projects involving oversized components, where flexibility and access are essential.

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi process capability
  • Very high 500A output for heavy structural welding
  • 10m interconnecting cables for increased working range
  • Separate 4 roll wire feed unit for large fabrication work

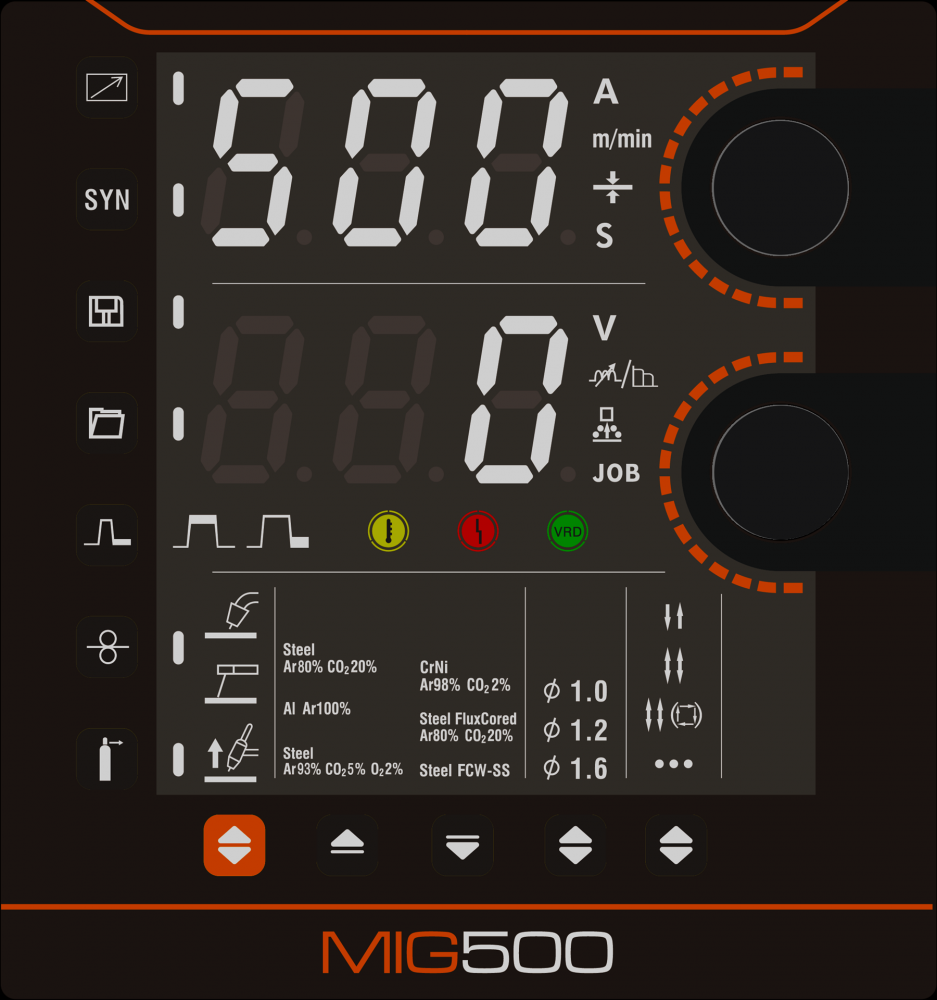

  • Advanced digital inverter control system
  • Synergic and manual welding modes
  • Enhanced dual drive wire feed system for smooth delivery
  • High duty cycle suitable for prolonged welding
  • Program memory storage for repeat jobs
  • 2T / 4T / Cycle / Spot trigger control
  • Adjustable inductance and crater fill for weld control
  • On demand cooling and energy saving standby mode
  • Remote control compatibility (wired, wireless, app)
  • USB connectivity for software updates
  • IP23S protection for harsh environments

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: up to 500A
  • Duty Cycle: high duty industrial rated
  • Wire Feed System: dual drive 4 roll separate unit
  • Wire Feed Speed: approx. up to 20 – 24 m/min
  • Wire Spool Size: D300
  • Protection Class: IP23S
  • System Configuration: Inverter + feeder + 10m leads


What’s Included

  • EVO MIG 500S inverter power source
  • Separate 4 roll wire feed unit
  • 10m interconnection cable set
  • MIG welding torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty industrial trolley

Optional Accessories

  • Water cooling unit for continuous high duty welding
  • Extended cables (15m / 20m)
  • Push pull torch or spool gun
  • Remote control systems
BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
