Jasic PRO MIG 250 Synergic Multi Process 230V Inverter Package (Model JM-250P)
Jasic PRO MIG 250 Synergic Multi Process 230V Inverter Package (Model JM-250P)

Jasic PRO MIG 250 Synergic Multi Process 230V Inverter Package (Model JM-250P)

Stock Code: FAW00042345
Manufacturer Part No: ZXJM-250P
Available for Despatch in 1 working days.
£1,818.60 (exc VAT) per Each
Quantity: - +

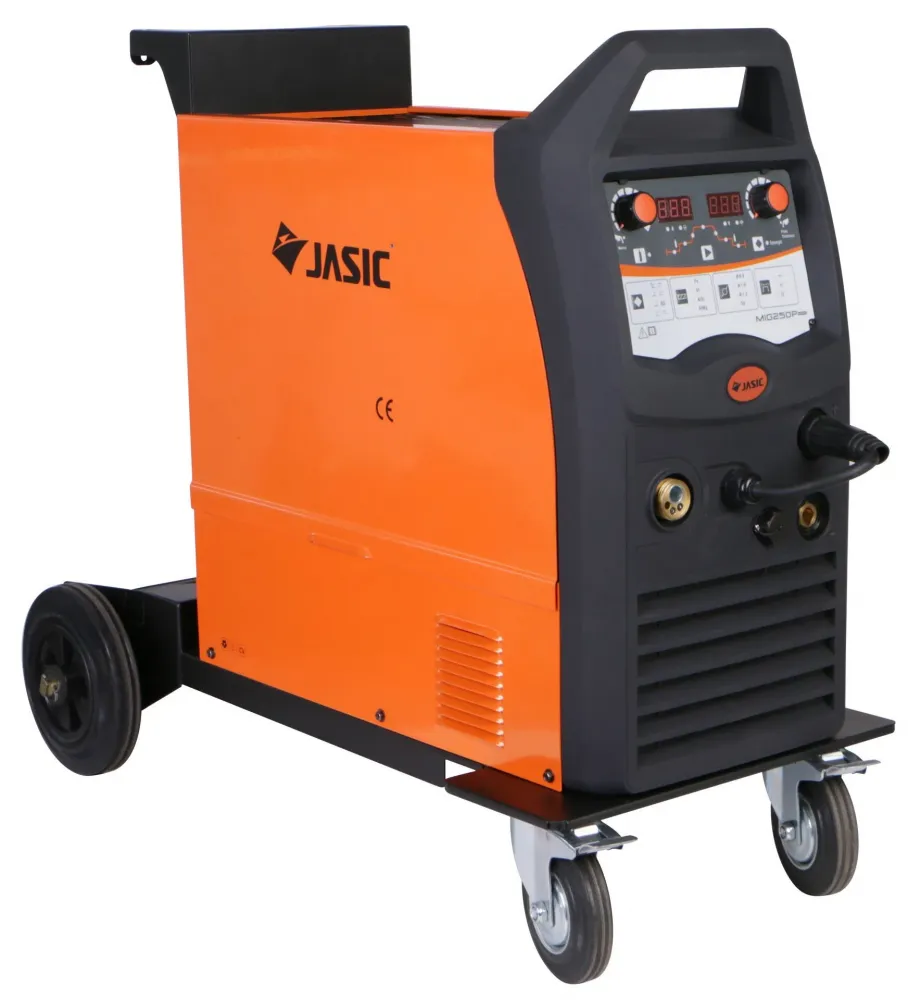

Jasic PRO MIG 250P Pulse Compact Multi Process Inverter 230V - Model No: JM-250P

High output 250 amp pulse MIG inverter with synergic control, multi process capability, and advanced arc performance for professional and industrial fabrication.

Product Overview

The Jasic PRO MIG 250P Pulse Compact inverter is a powerful and feature rich multi process welding system designed for demanding workshop and fabrication environments. Offering MIG/MAG, MMA, and Lift TIG functionality, it delivers increased power and duty cycle compared to compact machines while maintaining ease of use through intelligent synergic control.

The addition of pulse MIG enables high quality welds with reduced spatter and improved control, making it particularly effective for aluminium and stainless steel applications. With a robust 4 roll wire feed system and advanced IGBT technology, the machine provides stable arc performance and consistent weld quality across a wide range of materials.

Key Features

  • MIG/MAG, MMA and Lift TIG multi process capability
  • 250A output for heavier fabrication and industrial applications
  • Pulse MIG for reduced spatter and superior weld finish
  • Intelligent synergic control with pre-set welding programs
  • 4 roll wire feed unit for smooth and reliable wire delivery
  • Adjustable inductance for arc control and bead profile
  • 2T/4T torch operation modes
  • On demand fan cooling system
  • Automatic compensation for voltage fluctuations
  • Generator compatible (AVR protection)
  • Overcurrent and overload protection

Technical Specifications

  • Input Voltage: 230V single phase (±15%)
  • MIG Output Range: 40 – 250A
  • MMA Output Range: up to approx. 220A
  • Duty Cycle: approx. 40% @ 250A
  • Pulse Function: Yes (MIG)
  • Wire Feed System: 4 roll drive
  • Wire Feed Speed: approx. 1.5 – 16 m/min
  • No Load Voltage: approx. 75V
  • Protection Class: IP21S / Class F
  • Dimensions: approx. 895 x 455 x 760 mm
  • Weight: approx. 49.7 kg


What’s Included

  • MIG 250P Pulse Compact inverter power source
  • MIG welding torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Operating manual

Optional Accessories

  • Spool gun for aluminium welding
  • TIG torch for Lift TIG welding
  • Trolley and cylinder support system
  • Remote control options
BrandJasic
Ouput Amperage250
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)10/8/6
Application/UseProfessional
