Jasic EVO MIG 250 PFC Multi Process Compact 95-265V Inverter Package & Trolley (Model EM-250CT
Jasic EVO MIG 250 PFC Multi Process Compact 95-265V Inverter Package & Trolley (Model EM-250CT
Jasic EVO MIG 250 PFC Multi Process Compact 95-265V Inverter Package & Trolley (Model EM-250CT

Jasic EVO MIG 250 PFC Multi Process Compact 95-265V Inverter Package & Trolley (Model EM-250CT

Stock Code: FAW00042343
Manufacturer Part No: PKEM-250CT
Available for Despatch in 1 working days.
£1,300.60 (exc VAT) per Each
Quantity: - +

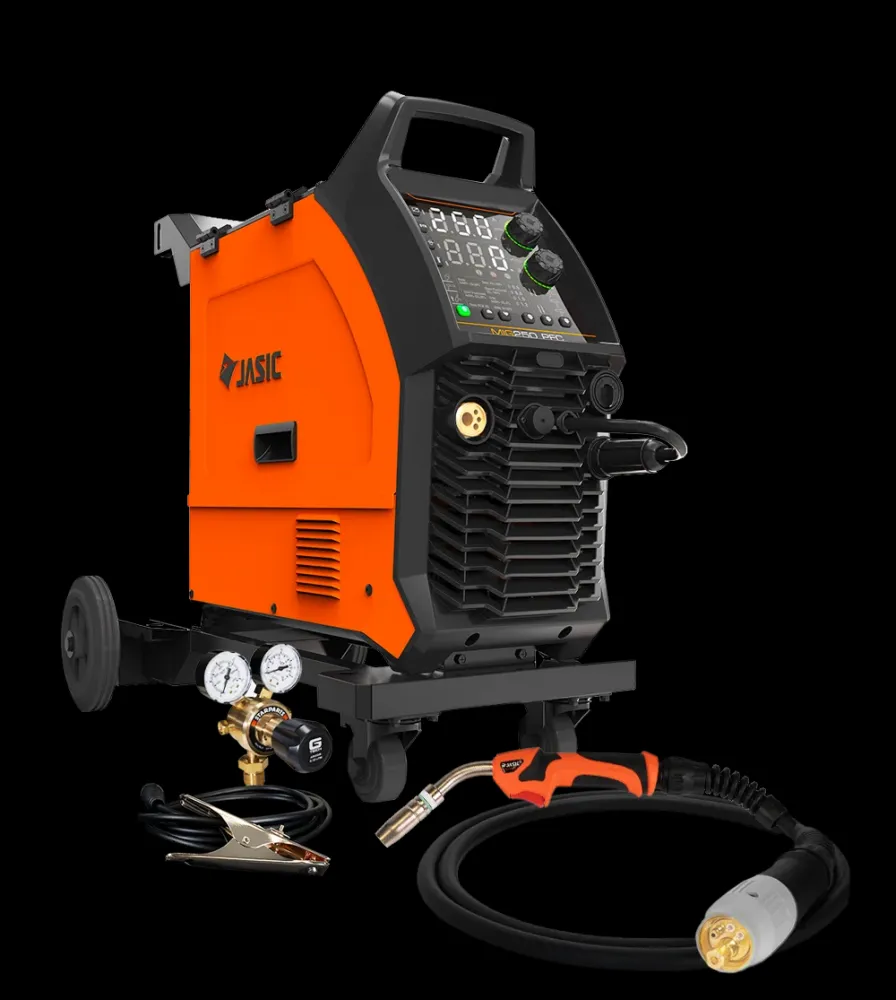

Jasic EVO MIG 250CT PFC Multi Process Compact Inverter & Trolley 95-265V - Model No: EM-250CT

High output 250 amp multi process inverter with synergic control, power factor correction, and enhanced performance for professional workshop and site welding.

Product Overview

The Jasic EVO MIG 250CT PFC inverter is a high performance compact multi process welding system on a trolley designed for professional fabrication and demanding applications. Offering MIG, MMA, and Lift TIG functionality, it delivers increased output and duty cycle compared to smaller EVO machines while maintaining portability and ease of use.

Featuring intelligent synergic control, the unit automatically selects optimal welding parameters, helping deliver consistent weld quality across a range of materials. Power factor correction (PFC) allows reliable operation with fluctuating power supplies and generator use, making it suitable for both workshop and site environments.

Key Features

  • MIG, MMA and Lift TIG multi process capability
  • 250A output for heavier fabrication work
  • Intelligent synergic control for simplified setup
  • Power Factor Correction (PFC) – generator friendly
  • Wide voltage input range for site and workshop environments

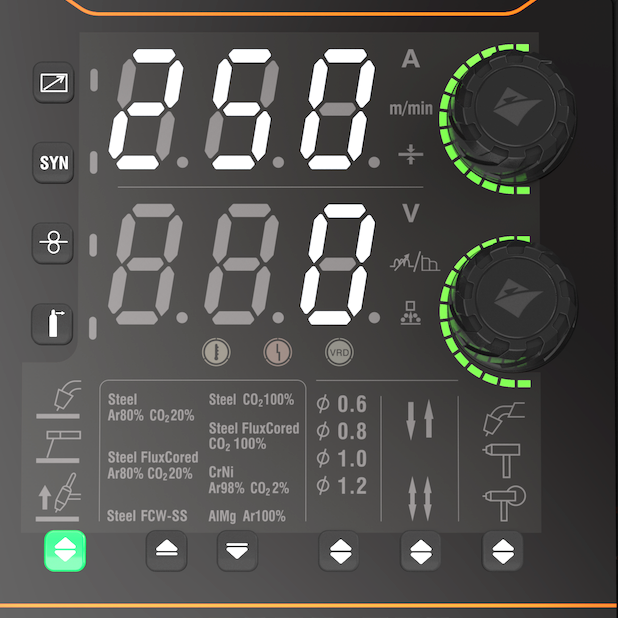

  • Clear digital control panel for accurate parameter adjustment
  • Welding engineer mode for advanced control
  • Adjustable inductance for arc control
  • Fan on demand cooling system
  • Auto sleep mode for energy efficiency
  • LED lit wire feed cabinet and organised storage
  • Voltage Reduction Device (VRD) for MMA safety
  • Thermal and overload protection systems

Technical Specifications

  • Input Voltage: Single phase AC with PFC (wide voltage range)
  • MIG Output Range: up to 250A
  • MMA Output Range: up to approx. 220A
  • TIG Output Range: up to 250A (Lift TIG)
  • Duty Cycle: approx. 30–35% @ 250A
  • Wire Feed Speed: approx. 2–14 m/min
  • Wire Spool Size: 200mm (5kg)
  • Protection Class: IP23S


What’s Included

  • EVO MIG 250CT PFC inverter power source
  • Inverter Trolley
  • 3m MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • V groove feed rollers

Optional Accessories

  • Spool gun for aluminium welding
  • TIG torch for Lift TIG applications
  • Remote control options
BrandJasic
Ouput Amperage250
Power Supply95-265V
GeneratorYes
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)10/8/6
Application/UseProfessional
