Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package c/w 10Mtr Interconnecting Cables
Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package c/w 10Mtr Interconnecting Cables
Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package c/w 10Mtr Interconnecting Cables

Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package c/w 10Mtr Interconnecting Cables

Stock Code: FAW00042338
Manufacturer Part No: ZXEM-500S-10M-WC
Available for Despatch in 1 working days.
£3,470.60 (exc VAT) per Each
Quantity: - +

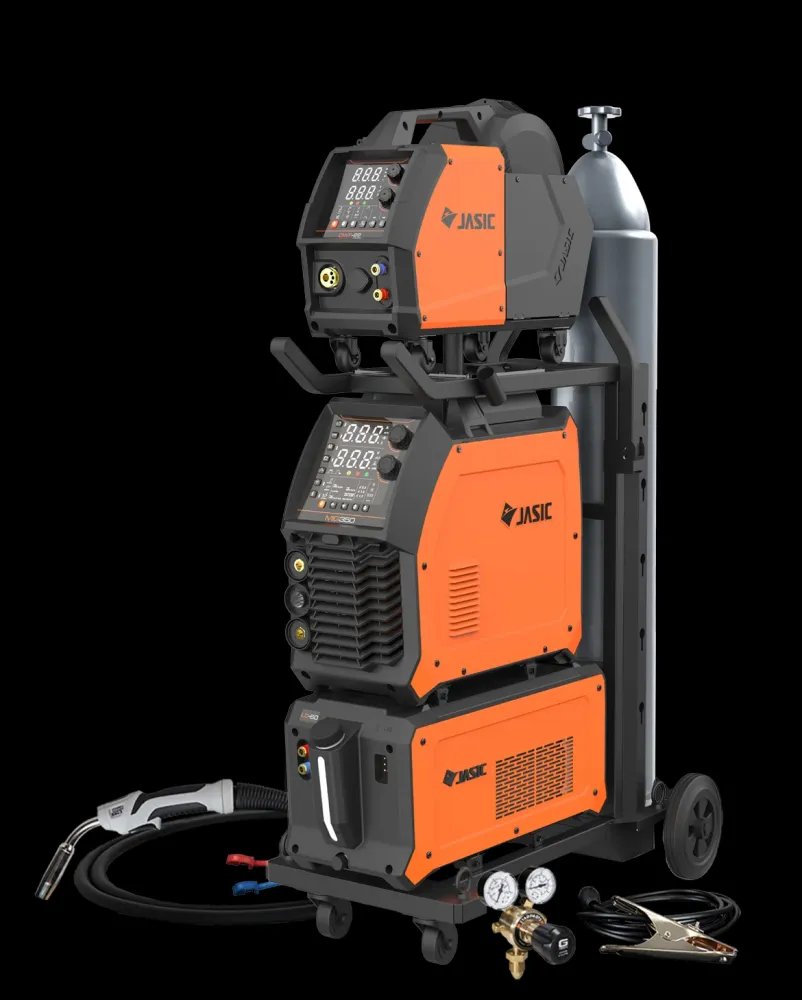

Jasic EVO MIG 500S Multi-Process Separate Inverter Package with water Cooler and 10m Interconnecting Cables - Model No: EM-500S-10M-WC

Fully specified 500 amp three phase industrial welding system with separate wire feed unit, integrated water cooling, and 10 metre interconnecting cables for continuous duty operation and maximum working flexibility.

Product Overview

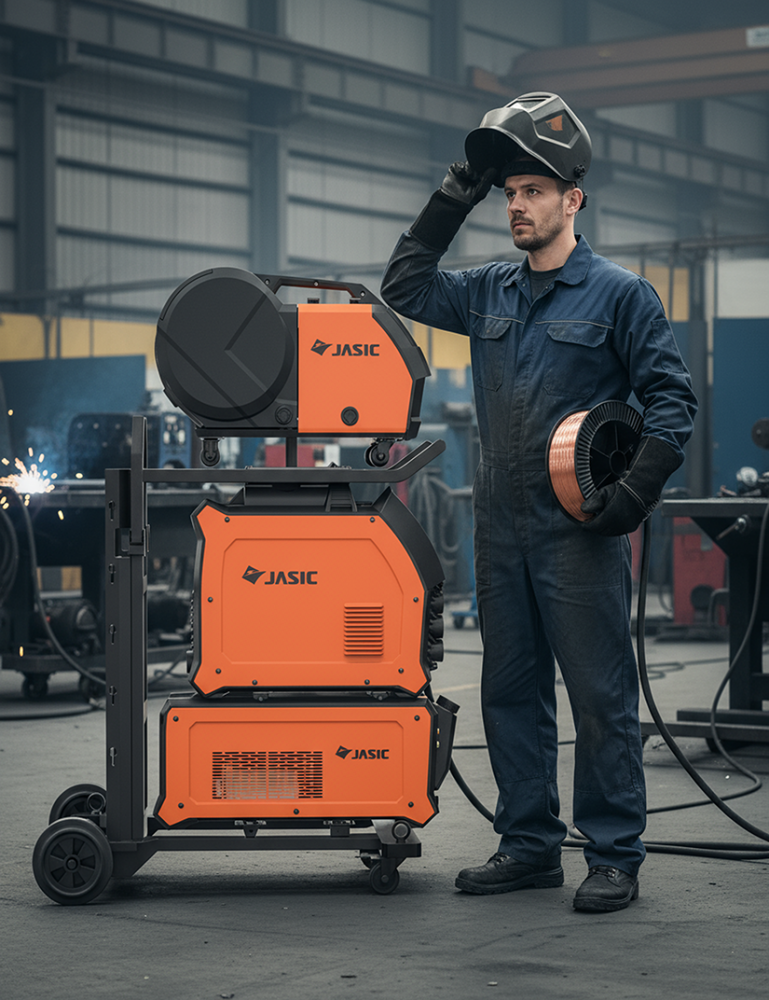

The Jasic EVO MIG 500S water-cooled inverter is a high performance industrial welding system designed for structural steelwork, heavy fabrication, and high output production environments. Featuring a powerful 3 phase inverter power source and separate 4 roll wire feed unit, it delivers exceptional arc stability, high output performance, and reliable welding results across demanding applications.

This highest spec configuration combines water cooling for continuous duty welding with 10 metre interconnecting cables for extended working range. Water cooling maintains optimal torch performance during prolonged welding, while the extended cable set allows greater separation between power source and feeder, ideal for large fabrication bays and oversized workpieces.

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi-process capability
  • Maximum 500A output for heavy structural welding
  • Water cooling system for continuous duty operation
  • 10m interconnecting cables for extended working range
  • Advanced ARM and DSP digital inverter technology

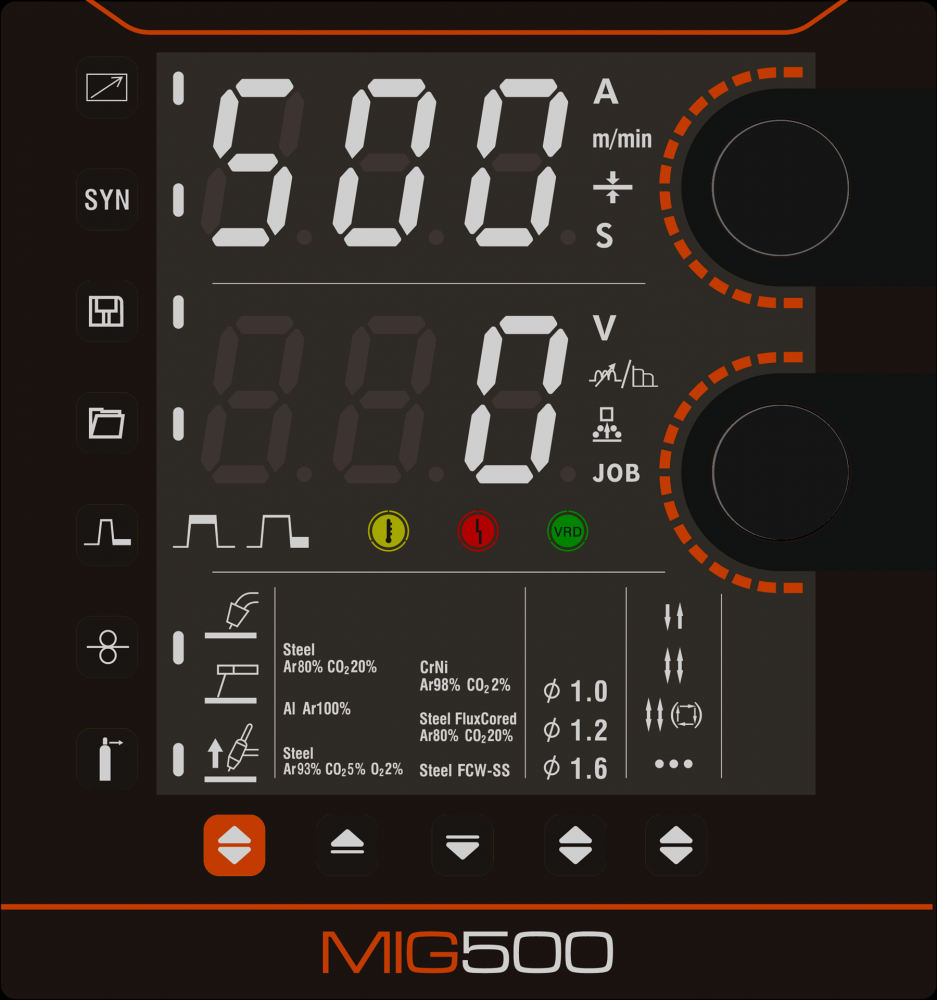

  • Separate wire feed unit with ClearVision HD display
  • Full synergic and manual welding modes
  • Enhanced dual drive 4 roll wire feed system
  • Program memory storage for repeatable jobs
  • 2T / 4T / Cycle / Spot trigger control
  • Crater fill and adjustable inductance for weld quality
  • On demand cooling and auto sleep mode (energy efficient)
  • Remote control compatibility (wired, wireless, mobile app)
  • USB Type-C connectivity for updates
  • IP23S protection for industrial environments

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 30 – 500A
  • Duty Cycle: approx. 500A @ 40%
  • Wire Feed System: 4 roll separate unit
  • Wire Feed Speed: approx. 2 – 24 m/min
  • Wire Spool Size: D300
  • Efficiency: approx. 90%
  • Protection Class: IP23S
  • System Configuration: Inverter + feeder + water cooler + 10m leads
  • Weight: approx. 98 kg


What’s Included

  • EVO MIG 500S inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 10m interconnecting cable set
  • Water cooled MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty industrial trolley

Optional Accessories

  • Extended cables (15m / 20m)
  • Push pull torch or spool gun for aluminium
  • Remote control & Bluetooth module
  • Industrial grade consumables
BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
