Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package (Model EM-500S-WC)
Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package (Model EM-500S-WC)
Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package (Model EM-500S-WC)

Jasic EVO MIG 500 Multi Process W/C Separate 400V Inverter Package (Model EM-500S-WC)

Stock Code: FAW00042337
Manufacturer Part No: ZXEM-500S-WC
Available for Despatch in 1 working days.
£3,120.60 (exc VAT) per Each
Quantity: - +

Jasic EVO MIG 500S Multi Process Separate Inverter Package with Water Cooler 400V -  Model No: EM-500S-WC

Heavy duty 500 amp three phase digital welding system with separate wire feed unit and integrated water cooling for continuous duty industrial fabrication and high output welding environments.

Product Overview

The Jasic EVO MIG 500S water cooled inverter is a high capacity industrial welding system designed for structural steelwork, heavy fabrication, and production environments. Featuring a powerful 3 phase inverter power source and separate 4 roll wire feed unit, it delivers consistent arc stability, high output, and reliable performance across demanding applications.

Equipped with an integrated water cooling system, the machine is optimised for extended welding periods and high amperage operation. Advanced ARM and DSP digital microprocessor control ensures precise parameter adjustment and stable arc characteristics, while synergic modes simplify setup for consistent weld quality across multiple materials.

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi process capability
  • Very high 500A output for heavy structural welding
  • Water cooling system for continuous duty operation
  • Advanced ARM and DSP digital inverter technology

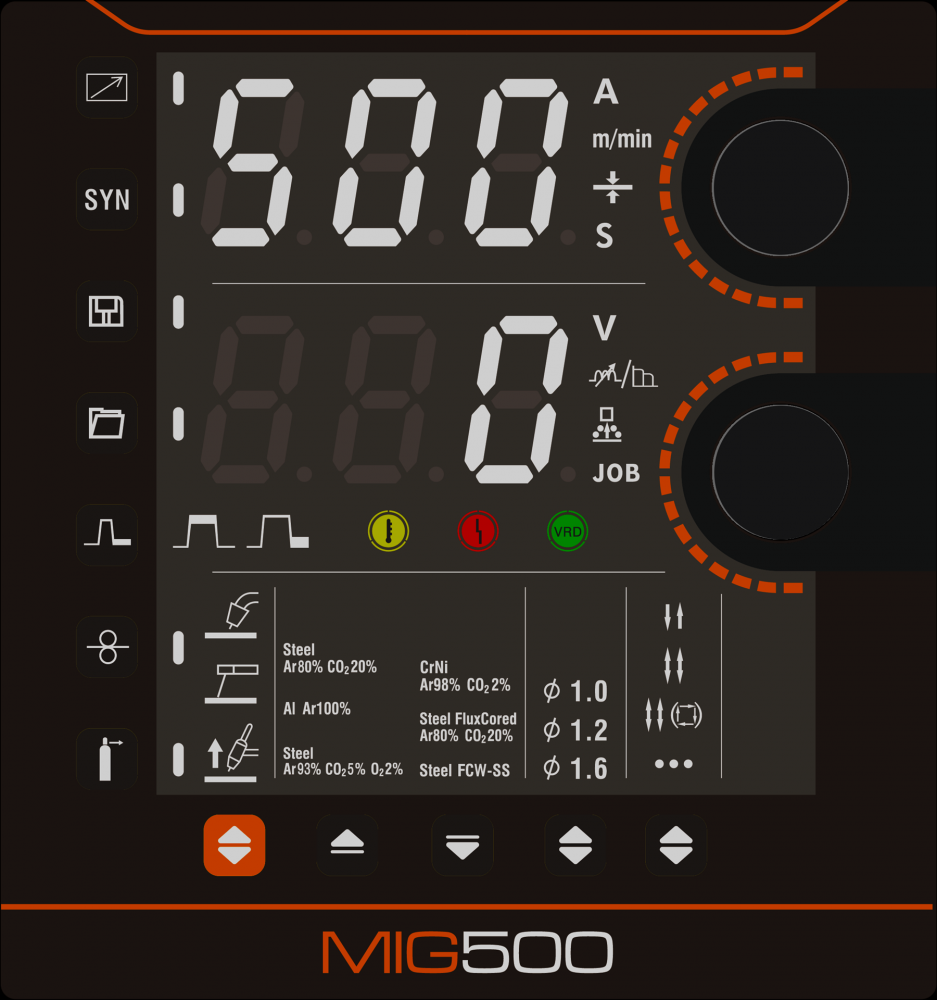

  • Separate wire feed unit with ClearVision HD digital display
  • Full synergic and manual welding modes
  • Enhanced dual drive 4 roll wire feed system
  • Program memory storage (multiple jobs per process)
  • 2T / 4T / Cycle / Spot trigger control
  • Crater fill and adjustable inductance for weld quality
  • On demand cooling and auto sleep mode (energy efficient)
  • Remote control compatibility (wired, wireless, mobile app)
  • USB Type C connectivity for updates and device charging
  • IP23S protection for industrial environments

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 30 – 500A
  • Duty Cycle: approx. 500A @ 40%
  • Wire Feed System: 4 roll separate unit
  • Wire Feed Speed: approx. 2 – 24 m/min
  • Wire Spool Size: D300
  • Efficiency: approx. 90%
  • Protection Class: IP23S
  • Weight: approx. 98 kg



What’s Included

  • EVO MIG 500S inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 5m Interconnection cable
  • Water cooled MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty trolley with storage

Optional Accessories

  • Extended interconnecting cables (10m / 15m / 20m)
  • Push pull torch or spool gun for aluminium
  • Remote control & Bluetooth module
  • Industrial consumables packages
BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
