Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables (Mod
Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables (Mod

Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables (Mod

Stock Code: FAW00042329
Manufacturer Part No: ZXJM-272S-10M
Available for Despatch in 1 working days.
£2,518.60 (exc VAT) per Each
Quantity: - +

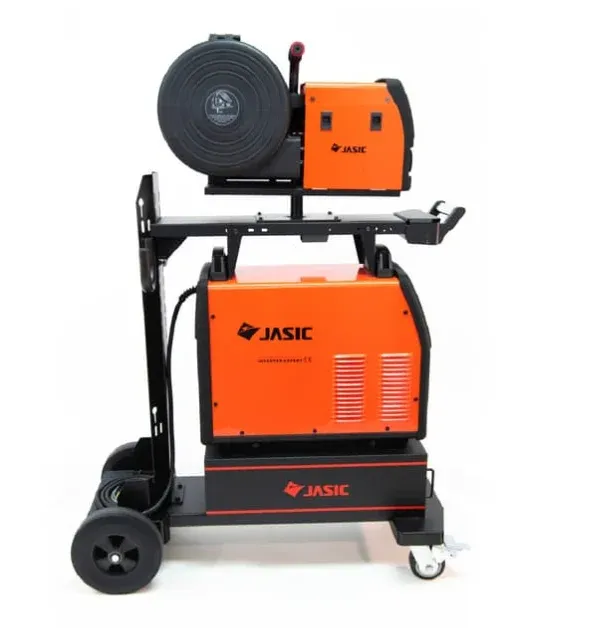

Jasic PRO MIG 270 Multi Process Separate Inverter Package with 10m Interconnecting Cables 230V – Model No: JM-272S-10M

Industrial 270 amp separate inverter welding system with 4 roll wire feed unit and extended 10m interconnecting cables for maximum flexibility in workshop and fabrication environments.

Product Overview

The Jasic PRO MIG 270 Separate inverter welder is a heavy duty multi process welding solution designed for demanding fabrication and workshop applications. Featuring a separate wire feed unit and inverter power source, it delivers consistent performance, excellent arc stability, and high output for repetitive weld cycles.

This upgraded configuration includes 10 metre interconnecting cables, allowing greater separation between the power source and wire feed unit. This makes it ideal for larger workspaces, fabrication bays, and jobs where improved accessibility and manoeuvrability are essential.

Key Features

  • MIG/MAG, MMA and Lift TIG multi process capability
  • 270A output for heavy duty fabrication work
  • Separate wire feed unit for improved wire delivery
  • 10m interconnecting cable for extended working range
  • 4 roll wire drive system for smooth feeding
  • Digital amp and volt display for precise control
  • High duty cycle for prolonged welding operations
  • Advanced IGBT inverter technology
  • Burn back control and wire inching
  • 2T/4T trigger operation modes
  • Gas check function and status LED indicators
  • Variable inductance for arc tuning
  • Generator compatible (AVR protection)
  • Heavy duty trolley for full size gas cylinder

Technical Specifications

  • Input Voltage: 230V single phase
  • Output Range: approx. 30 – 270A
  • Duty Cycle: approx. 270A @ 30%
  • Wire Feed System: 4 roll drive, separate unit
  • Wire Feed Speed: approx. 0 – 16 m/min
  • Voltage Range: approx. 11 – 29V
  • No Load Voltage: approx. 54V
  • Protection Class: IP21S / Class F
  • Weight: approx. 100 kg


What’s Included

  • MIG 270 inverter power source
  • Separate 4 roll wire feed unit
  • 10m interconnecting cable
  • MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty trolley

Optional Accessories

  • Water cooler for high duty cycle work
  • MMA leads package
  • Heavy duty industrial torches
  • Spool gun options
BrandJasic
Ouput Amperage270
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)12/10/8
Application/UseHeavy Trade
