Jasic PRO MIG 500 Synergic Pulse Multi Process Separate 400V Inverter Package (Model JM-500P)
Jasic PRO MIG 500 Synergic Pulse Multi Process Separate 400V Inverter Package (Model JM-500P)

Jasic PRO MIG 500 Synergic Pulse Multi Process Separate 400V Inverter Package (Model JM-500P)

Stock Code: FAW00040146
Manufacturer Part No: ZXJM-500P
Available for Despatch in 1 working days.
£5,976.60 (exc VAT) per Each
Quantity: - +

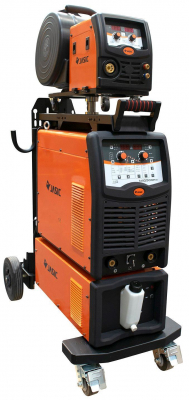

Jasic PRO MIG 500 Synergic Pulse Multi Process Separate Inverter Package with Water Cooler 400V - Model No: JM-500P

High performance 500 amp three phase pulse MIG welding system with synergic control and digital inverter technology for precision fabrication and heavy duty industrial applications.

Product Overview

The Jasic MIG 500 Pulse synergic inverter is a powerful multi process welding system designed to deliver exceptional weld quality across a wide range of industrial applications. Combining 500A output with pulse MIG technology, it produces consistent, low spatter welds with excellent arc stability and penetration.

Equipped with advanced IGBT inverter technology and DSP digital control, the machine offers precise parameter adjustment and synergic welding programs for simplified setup. It supports pulsed MIG, MIG/MAG, DC Lift TIG and MMA processes, making it suitable for steel, stainless steel and aluminium fabrication.

Supplied as a complete industrial package including separate wire feed unit and integrated water cooling system, the MIG 500 Pulse is built for continuous high duty operation, ensuring consistent weld quality during long production runs.

Key Features

  • Pulsed MIG, MIG/MAG, MMA and DC Lift TIG multi process capability
  • Pulse MIG for low spatter and high quality weld finish
  • 500A output for heavy fabrication and industrial work
  • Synergic and standard operating modes
  • Advanced IGBT inverter with DSP digital control
  • Job storage system for repeatable weld settings
  • 4 roll wire feed system with encoder feedback
  • Supports 0.8 – 1.6mm welding wire
  • Smart fan and cooling control for efficiency
  • Self-diagnostic system for reliability
  • Water cooling unit for high duty cycle welding
  • Reduced spatter and improved weld appearance
  • Heavy duty trolley for full size gas bottle

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 30 – 500A
  • Duty Cycle: approx. 500A @ 50%
  • Wire Feed Speed: approx. 1.5 – 23 m/min
  • Wire Diameter Range: 0.8 – 1.6 mm
  • Process: Pulsed MIG / MIG MAG / MMA / Lift TIG
  • Protection Class: IP23S
  • Efficiency: approx. 92%
  • Weight: approx. 129 kg

What’s Included

  • MIG 500 pulse inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 5m interconnection cable set
  • MIG welding torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty industrial trolley

Optional Accessories

  • Extended interconnecting leads (10m / 15m / 20m)
  • Push pull torch or spool gun for aluminium
  • Advanced welding consumables

Warranty: Includes a 5 year manufacturer’s warranty (subject to registration).

BrandJasic
Ouput Amperage500
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)25+/20/15+
Application/UseHeavy Production
