Jasic MAX CUT 160 Plasma 400V Inverter Package (Model MC-160)

Stock Code: FAW00042357
Manufacturer Part No: ZXMC-160

Available for Despatch in 1 working days.

£3,459.00 (exc VAT) per Each

Quantity Ordered	Price per Each
1+	£3,459.00 (exc VAT)

Quantity: - +

Descriptions

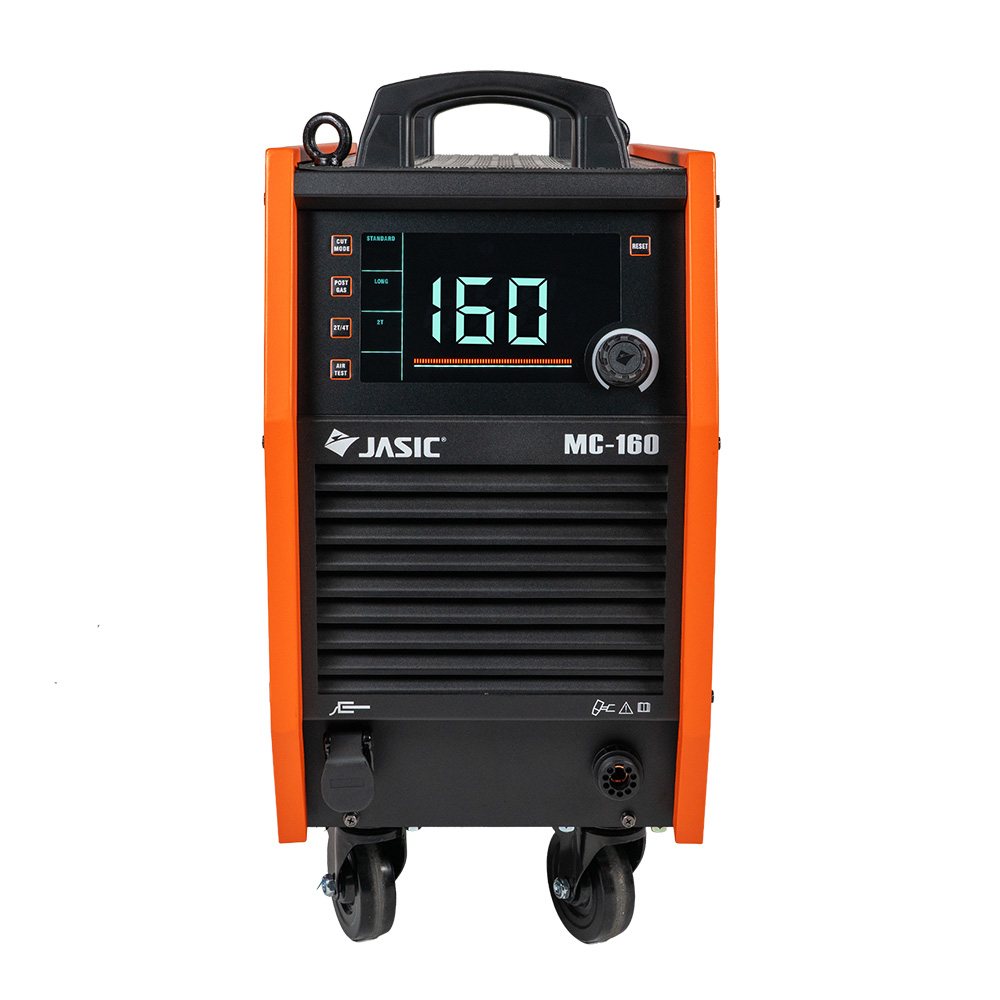

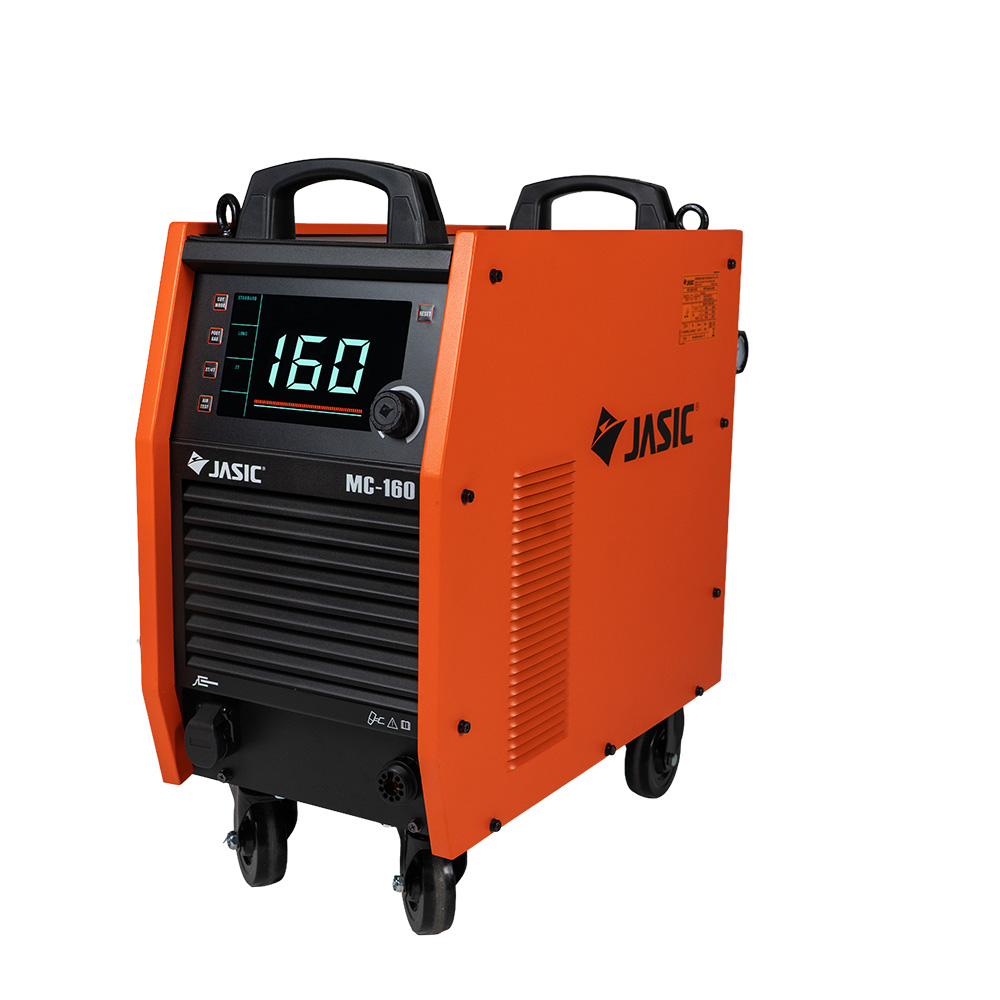

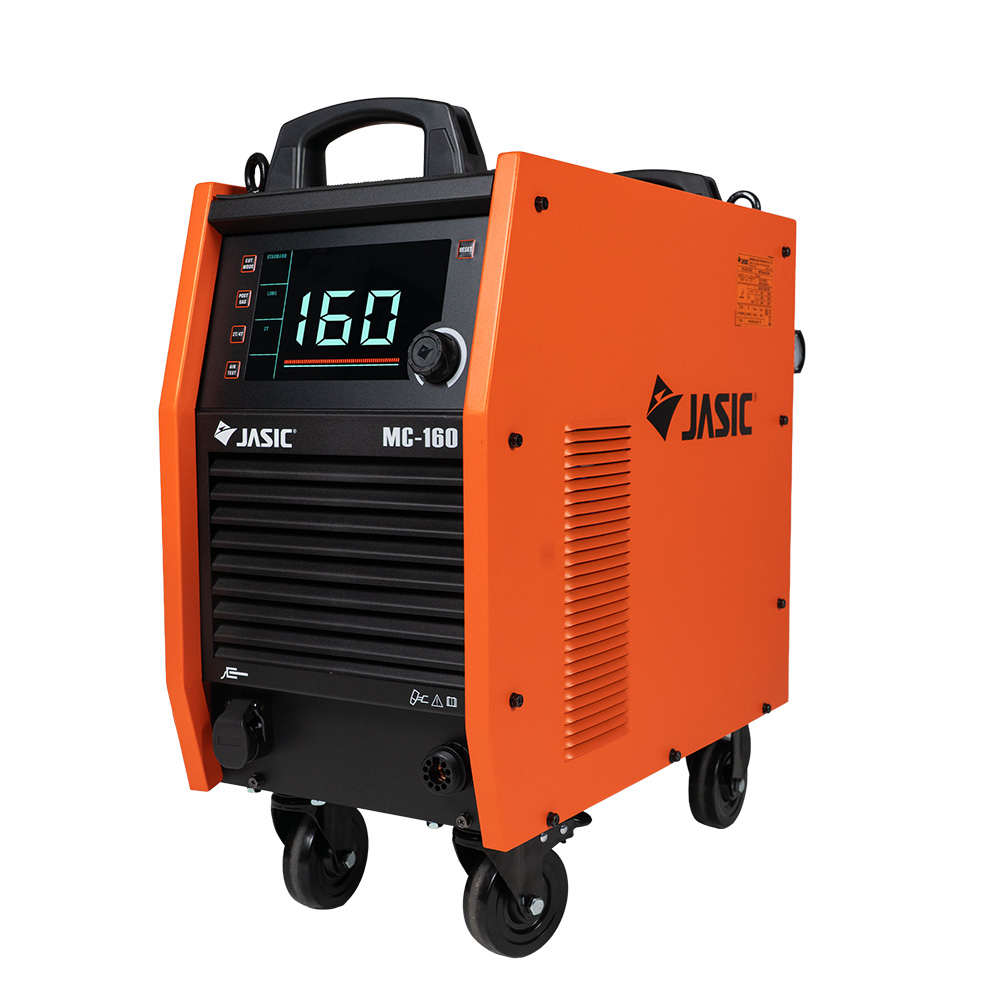

Jasic MAX CUT 160 Plasma Cutter Inverter Package 400V – Model No: MC-160

Industrial 160 amp plasma cutter delivering maximum cutting power, precision and continuous duty performance for heavy fabrication and CNC applications.

Product Overview

The Jasic MAX CUT 160 is a high capacity industrial plasma cutting inverter designed for the most demanding fabrication, engineering, and production environments. Built with advanced IGBT inverter technology, it delivers exceptional cutting performance with smooth, stable arc characteristics across a wide range of conductive materials.

Engineered for continuous heavy duty use, the MAX CUT 160 offers outstanding reliability with advanced cooling, sealed air pathways, and intelligent digital control. Ideal for workshop, site, and CNC systems, it provides clean cuts on thick materials while maintaining precision and efficiency.

Key Features

High output 160A plasma cutting inverter
Advanced IGBT technology for efficient, stable performance
100% duty cycle at 125A for continuous operation
60% duty cycle at 160A for high output cutting
Non HF arc ignition ideal for CNC applications
Excellent cutting quality with minimal dross
Continuous cutting, mesh cutting and plasma gouging capability
High definition digital display with encoder control
Sealed dust free air passage for improved durability
On demand fan cooling system
Auto detection for edge and pierce starts
Rugged industrial design with overload protection

Technical Specifications

Input Voltage: 3 Phase, AC 400V, 50/60Hz
Current Range: 30–160A
Duty Cycle: 160A @ 60% / 125A @ 100%
Clean Cut: Up to 40mm
Severance Cut: Up to 60mm
Efficiency: Approx. 89%
Power Factor: 0.8
Protection Class: IP21S / H
Air Requirement: Approx. 220 L/min @ 5 bar
Weight: Approx. 58kg

View full product details

What’s Included

MAX CUT 160 Plasma Inverter
6m UPH-160 Plasma Cutting Torch
Earth Clamp and Lead
Operating manual

Optional Accessories

Machine torch for CNC cutting
Circle cutting kit
Replacement torch consumables
Trolley and handling systems

Specifications

Brand	Jasic
Ouput Amperage	160
Power Supply	400V
Generator	No
Materials Cut	Steel/Stainless Steel/Alum
Clean Cut Thickness (mm) (Steel/St/St/Alum)	45/38/30
Application/Use	Production
