Jasic PRO CUT 60 Plasma 400V Inverter Package (Model JP-61)
Jasic PRO CUT 60 Plasma 400V Inverter Package (Model JP-61)
Jasic PRO CUT 60 Plasma 400V Inverter Package (Model JP-61)

Jasic PRO CUT 60 Plasma 400V Inverter Package (Model JP-61)

Stock Code: FAW00040407
Manufacturer Part No: ZXJP-61
Available for Despatch in 1 working days.
£1,309.00 (exc VAT) per Each
Quantity: - +

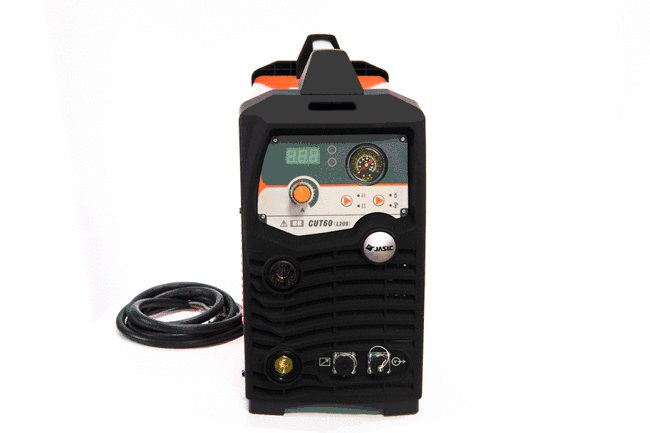

Jasic CUT 60 Plasma Cutter Inverter Package 400V – Model No: JP-61

Professional 60 amp plasma cutter with advanced inverter technology, designed for fast, precise cutting in workshop, fabrication, and industrial environments.

Product Overview

The Jasic CUT 60 is a 3 phase high performance plasma cutting inverter built for professional users requiring reliable and consistent cutting performance. Its advanced IGBT technology delivers smooth arc control and efficient cutting across a wide range of conductive materials.

Designed for workshop and fabrication use, the CUT 60 offers excellent cutting capability on mild steel, stainless steel, and aluminium, making it a versatile solution for both manual and automated cutting applications.

Key Features

  • Latest IGBT inverter technology
  • Variable cutting control for precision cutting
  • Clean cutting up to 20mm on mild steel
  • Non HF ignition for reliable arc starting
  • LED display with simple controls
  • Suitable for steel, stainless steel, aluminium and copper
  • Lightweight, portable and robust design
  • Mesh cutting capability
  • CNC connection for automated cutting
  • Generator friendly operation

Technical Specifications

  • Input Voltage: 3 Phase, AC 400V, 50/60Hz
  • Current Range: 20–60A
  • Duty Cycle: 60A @ 40%
  • Clean Cut: Up to 20mm
  • Severance Cut: Up to 25mm
  • Efficiency: Approx. 85%
  • Protection Class: IP21S / F
  • Air Requirement: 200 L/min @ 5 bar
  • Weight: Approx. 14.5kg


What’s Included

  • Plasma inverter power source
  • PT100 6m plasma torch
  • Earth return lead and clamp
  • Operating instructions

Optional Accessories

  • Replacement torch consumables
  • Circle cutting kit
  • Compressed air packages
BrandJasic
Ouput Amperage60
Power Supply400V
GeneratorNo
Materials CutSteel/Stainless Steel/Alum
Clean Cut Thickness (mm) (Steel/St/St/Alum)20/16/12
Application/UseTrade
