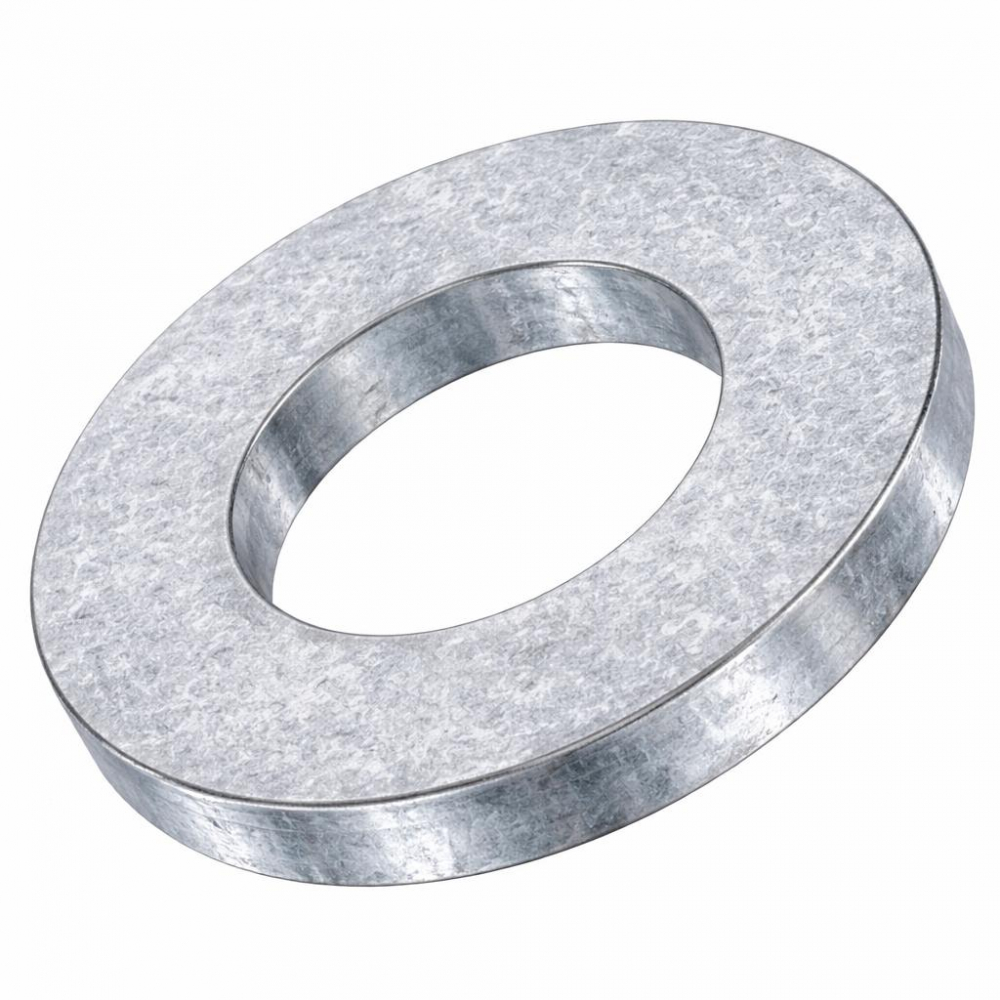

M16 Form G Washer DIN 9021 HDG Pack 350

M16 Form G Washer DIN 9021 HDG Pack 350

Stock Code: FAW00015358
Manufacturer Part No: OJ236261
Available for Despatch in 1 working days.
£48.28 (exc VAT) per Pack
Quantity: - +

Form G Washer DIN 9021 - Hot Dip Galvanised

Description
Form G washers manufactured from carbon steel with a hot dip galvanised finish to DIN 9021, designed to distribute the load of a threaded fastener over a significantly larger surface area. Form G (penny) washers feature a large outside diameter, approximately three times the nominal bolt diameter, making them ideal where maximum load spreading is required.

The hot dip galvanised coating provides a thick protective zinc layer for enhanced corrosion resistance in exposed environments. These washers provide a secure bearing surface between the fastener and the material being fixed, helping to reduce pull-through and surface damage when used with softer materials such as timber, plastics, insulation boards and thin sheet materials.

Key Features

  • Manufactured from carbon steel with hot dip galvanised finish
  • Form G (DIN 9021) design with large outside diameter approximately three times the nominal bolt diameter
  • Provides maximum load distribution over a wide surface area
  • Helps prevent pull-through in softer materials
  • Provides a secure bearing surface for fasteners
  • Enhanced corrosion resistance for external applications
  • Suitable for use with bolts, screws and nuts
  • Conforms to DIN 9021 standards

Applications

  • Timber, plastic and thin sheet material fixing
  • Insulation board installations
  • General engineering and construction
  • Structural steelwork and outdoor installations
  • External and exposed environments
Quantity350
DiameterM16
MaterialHDG
