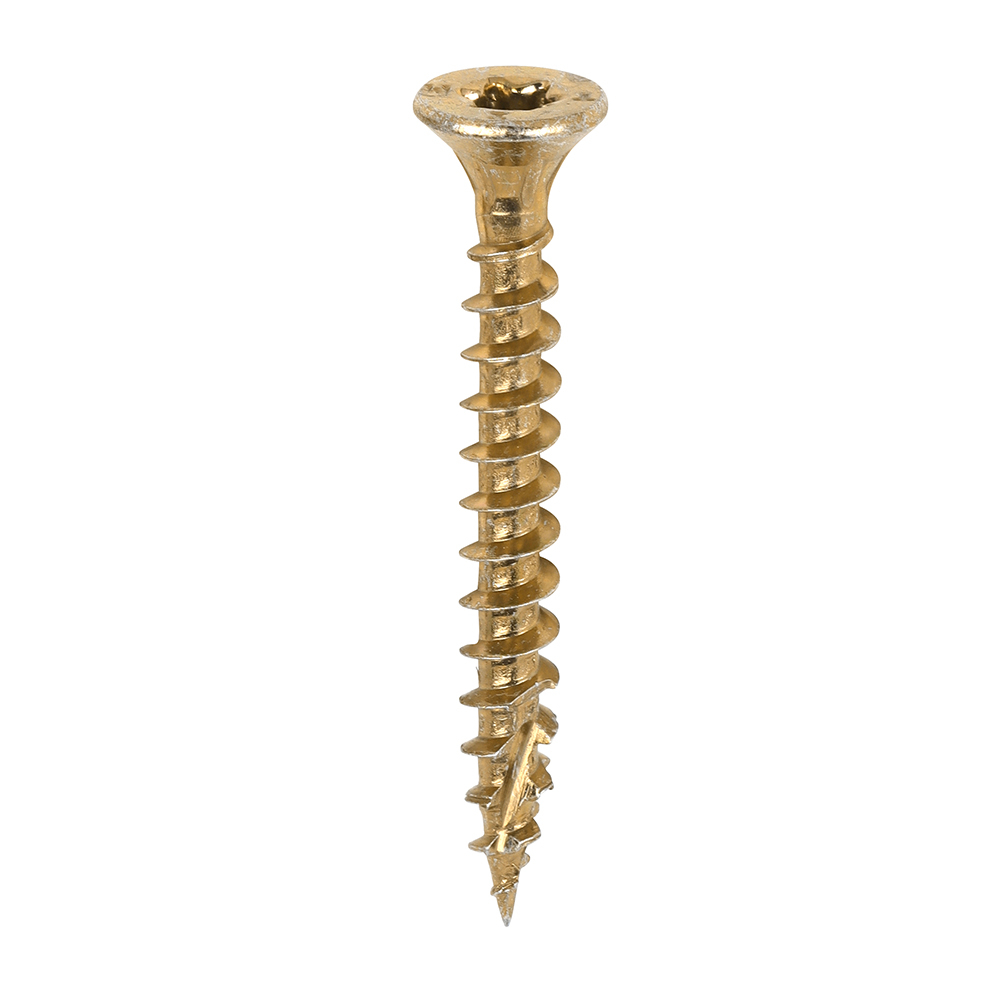

4.0x35 Torx Countersunk Multi Purpose Clamp Screw Zinc & Yellow Plated Timco C2 Range Pack 200

4.0x35 Torx Countersunk Multi Purpose Clamp Screw Zinc & Yellow Plated Timco C2 Range Pack 200

Stock Code: FAW00011666
Manufacturer Part No: 40035C2C
Available for Despatch in 1 working days.
£3.70 (exc VAT) per Pack
Quantity: - +

Torx Countersunk Multi-Purpose Clamp Screw Zinc & Yellow Plated Timco C2

The C2 Clamp Fix is a high performance clamping screw specifically designed to prevent timber “jacking”, making it ideal for timber to timber applications where a secure, stable connection is required. Manufactured using modern production methods, the C2 range features patented twin cut technology to ensure rapid pick up, consistent driving performance and reduced timber splitting. Its superior holding strength delivers outstanding results in demanding structural timber applications.

The precision Torx (TX) drive provides positive drive control and prevents cam-out, while ribs under the countersunk head improve countersinking for a smooth, flush finish and help minimise material damage. The screw is coated with a high molecular polymer lubricant that reduces insertion torque by up to 52% and provides up to 20× longer corrosion protection compared to standard zinc plating. A dual angle thread delivers exceptional pull out resistance and clamping performance, with the screw being partially threaded from 40 mm to maximise draw down.

Key Features

  • C2 high performance clamp screw
  • Zinc & yellow plated finish
  • Precision TX drive recess for positive drive and reduced cam-out
  • Ribs under head for improved countersinking and flush finish
  • High molecular polymer lubricant reduces torque and increases corrosion protection
  • Dual angle thread for exceptional pull out resistance
  • Patented twin cut technology for rapid pick up and reduced timber splitting
  • Partially threaded from 40mm

Applications

  • Timber to timber fixing
  • Structural timber construction
  • Framing & joinery
  • Applications requiring high clamping force and reduced jacking
Quantity200
Diameter4
Length35
MaterialZinc & Yellow
Head TypeTorx Countersunk
