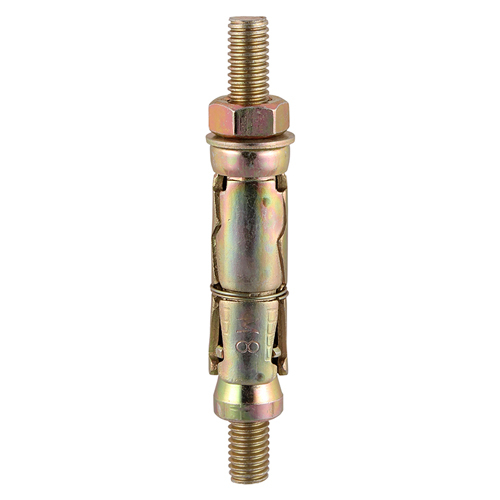

M8:60P Projecting Shield Anchor Zinc & Yellow Plated Timco Pack 4

M8:60P Projecting Shield Anchor Zinc & Yellow Plated Timco Pack 4

Stock Code: FAW00035951
Manufacturer Part No: 0860PSHP
Available for Despatch in 1 working days.
£2.94 (exc VAT) per Pack
Quantity: - +

M8:60P Projecting Shield Anchor Zinc & Yellow Plated Timco - Pack 4

Description
A heavy-duty projecting shield anchor designed for secure fixing into concrete, brick and stone. Manufactured by Timco, this anchor features a zinc and yellow plated finish for improved corrosion resistance. The three-segment expansion shield provides strong and reliable anchorage, while the projecting stud design allows fixtures to be positioned before tightening and enables easy removal or adjustment after installation.

Key Features

  • Heavy-duty masonry fixing for structural applications
  • Three-segment expansion shield for strong anchorage
  • Projecting stud allows accurate positioning before fastening
  • Compatible with standard metric threaded components
  • Torque controlled for secure installation
  • Zinc & yellow plated finish for corrosion resistance
  • Suitable for concrete, brick and stone
  • Thread size: M8
  • Maximum fixture thickness: 60mm
  • Drill hole diameter: 14mm
  • Minimum drill hole depth: approx. 60mm+
  • Shield length: approx. 50mm
  • Stud length: approx. 120mm
  • Material: Carbon steel
  • Pack quantity: 4
  • Part No: 0860PSHP

Applications

  • Fixing brackets, rails and structural supports
  • Installing pipework, cable tray and trunking
  • Securing machinery and framework
  • Heavy-duty anchoring into masonry substrates
Quantity4
DiameterM8
Length60P
MaterialZinc & Yellow
Grip Length60
