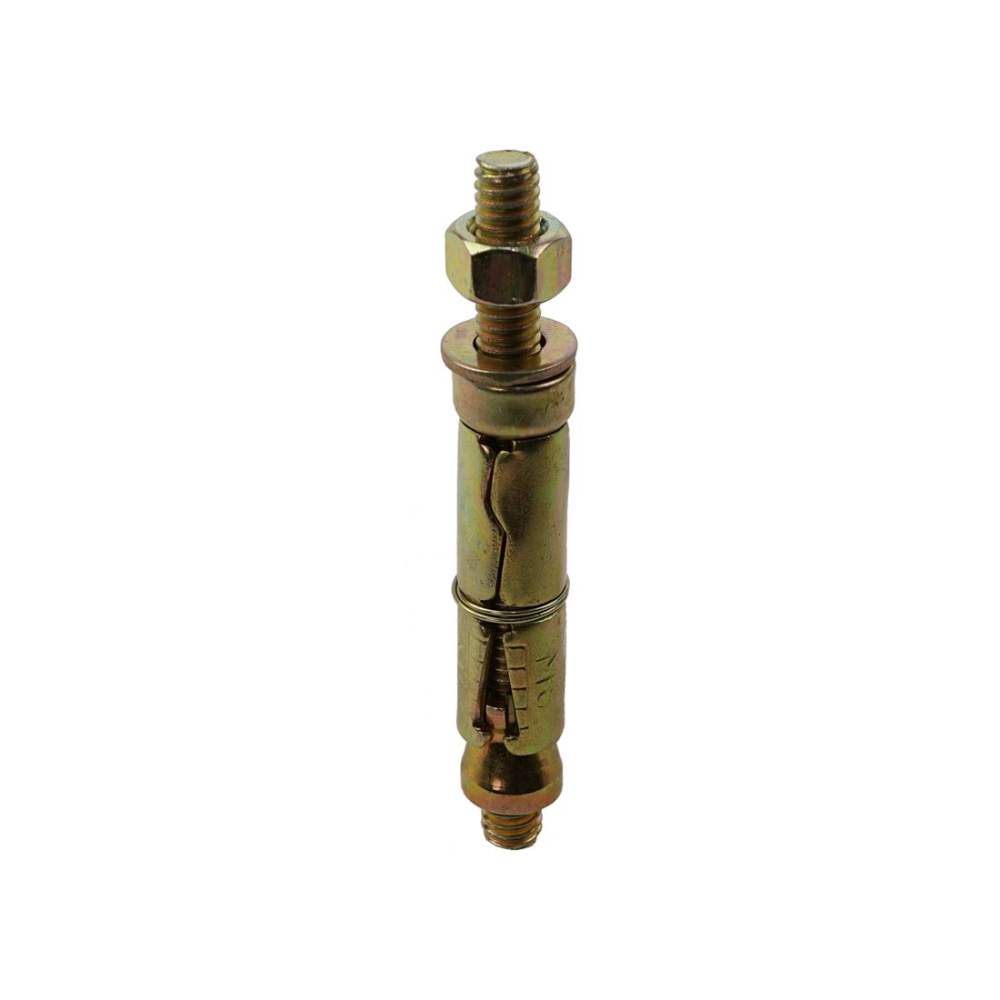

M8:15P Projecting Shield Anchor Zinc & Yellow Plated JCP Ankerit Pack 50

M8:15P Projecting Shield Anchor Zinc & Yellow Plated JCP Ankerit Pack 50

Stock Code: FAW00015048
Manufacturer Part No: APB0815
Available for Despatch in 1 working days.
£32.52 (exc VAT) per Pack
Quantity: - +

M8:15P Projecting Shield Anchor Zinc & Yellow Plated JCP Ankerit - Pack 50

Description
A medium-duty projecting shield anchor designed for secure fixing into concrete and brick. The JCP Ankerit range, this anchor features a zinc and yellow passivated finish for corrosion resistance. The three-way expansion shield provides strong and reliable grip, even in slightly oversized holes, while the projecting bolt design allows for easy removal or repositioning after installation.

Key Features

  • Medium-duty masonry fixing suitable for concrete and brick
  • Three-way expansion shield for strong, secure anchorage
  • Thick expander walls allow use in slightly oversized holes
  • Projecting bolt enables easy adjustment or removal
  • Zinc & yellow passivated finish for corrosion resistance
  • Suitable for concrete, solid brick and dense block
  • Thread size: M8
  • Maximum fixture thickness: 15mm
  • Drill hole diameter: 14mm
  • Minimum hole depth: 55mm
  • Overall length: approx. 75mm
  • Finish: Zinc & Yellow Passivated
  • Pack quantity: 50
  • Part No: APB0815

Applications

  • Fixing brackets, channel and support systems
  • Securing pipework, trunking and cable trays
  • Installing structural and mechanical fixtures
  • General purpose masonry anchoring applications
Quantity50
DiameterM8
Length15P
MaterialZinc & Yellow
Grip Length15
