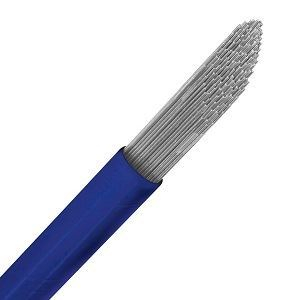

1.6mm Alloy 825 TIG Filler Weld Star Pack 5Kg

1.6mm Alloy 825 TIG Filler Weld Star Pack 5Kg

Stock Code: FAW00039910
Manufacturer Part No: 6031100608
Price Unavailable
Quantity: - +

Corrosion-Resistant Nickel Alloy Applications

Weld Star Alloy 825 is a nickel-iron-chromium TIG wire offering outstanding resistance to a wide range of corrosive environments, including both oxidising and reducing media. Its fully austenitic weld metal exhibits excellent stress corrosion cracking resistance, especially in chloride-containing atmospheres.

This alloy is ideal for applications requiring similar chemical composition in overlay cladding or joining. It is widely used in the chemical, petrochemical, power generation, and pulp and paper industries where reliability in harsh service conditions is critical.

Key Features

  • High resistance to oxidising and reducing acids
  • Excellent resistance to stress corrosion cracking in chloride environments
  • Fully austenitic weld metal with outstanding weldability
  • Ideal for overlay cladding and joining Alloy 825 and similar grades
  • Supplied in 1000 mm cut lengths, 5 kg packs

Typical Applications

  • Chemical process plant equipment
  • Heat exchangers and evaporators
  • Offshore and marine applications
  • Flue gas scrubbers
  • Pulp and paper industry equipment

Suitable Base Materials Include

  • Alloy 825 (N08825)
  • Alloy 904L (1.4539)
  • 6Mo alloys (e.g. 1.4529, N08926)
  • Alloy 28 (N08028)
  • 310Mo, 1.4577
  • Numerous high-alloy stainless and nickel-based materials

Standards

  • EN ISO 18274 – Ni 8065 – NiFe30Cr21Mo3
  • AWS A5.14 – ER NiFeCr-1

Chemical Composition % (Typical)

Element

%

C

≤0.05

Mn

≤0.70

Fe

22.00 min

P

≤0.020

S

≤0.004

Si

≤0.50

Cu

2.30–3.00

Ni

43.00–46.00

Al

≤0.20

Ti

1.00–1.20

Cr

22.00–23.50

Mo

3.00–3.50

Mechanical Properties

  • Tensile Strength: ≥550 MPa
  • Yield Strength: –
  • Elongation: –
  • Impact Strength: –

Mechanical properties are approximate and may vary based on heat input, shielding gas, and welding parameters.

Shielding Gas

  • EN ISO 14175 – TIG: I1 (Argon)

Welding Positions

  • EN ISO 6947 – PA, PB, PC, PD, PE, PF, PG
Diameter1.6
Wire ClassificationALLOY825: Ni/Fe/Cr alloy to St/St
BrandWeld Star
Weight5Kg
