Jasic EVOLVE MIG 200P Multi Process Inverter Package
Jasic EVOLVE MIG 200P Multi Process Inverter Package
Jasic EVOLVE MIG 200P Multi Process Inverter Package
Jasic EVOLVE MIG 200P Multi Process Inverter Package
Jasic EVOLVE MIG 200P Multi Process Inverter Package

Jasic EVOLVE MIG 200P Multi Process Inverter Package

Stock Code: FAW00040469
Manufacturer Part No: ZXJEV-200DP
Available for Despatch in 1 working days.
£1,818.60 (exc VAT) per Each
Quantity: - +

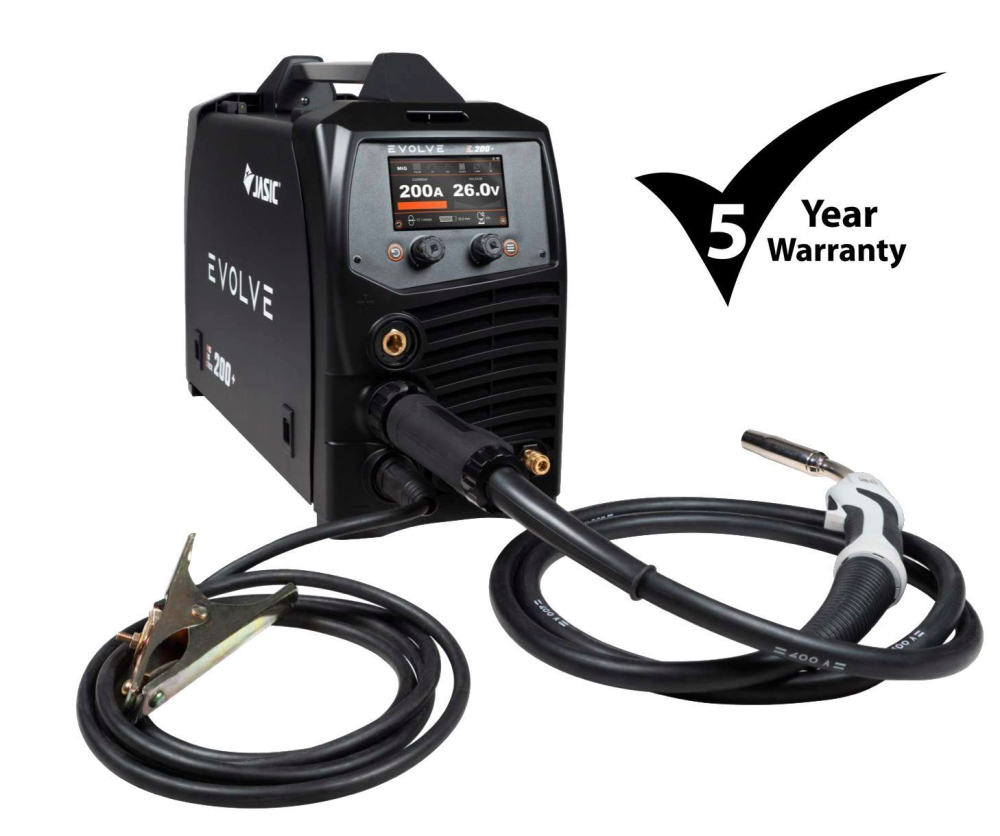

Jasic EVOLVE 200 Multi Process Digital Compact Inverter Package 230V - Model No: JEV-200DP

High performance 200 amp fully digital multi process inverter with pulse and double pulse MIG, high frequency TIG, and advanced connectivity for professional and light industrial fabrication applications.



Product Overview

The Jasic EVOLVE 200 represents the next generation of welding technology, combining MIG, MMA, and TIG processes with advanced pulse functionality and full digital control. Designed around an ARM Cortex based processor, it delivers precise arc performance and consistent weld quality across a wide range of materials and applications.

Built for modern fabrication environments, the EVOLVE series integrates connectivity, cloud capability, and firmware updates, allowing the machine to evolve over time. With intuitive touchscreen controls, synergic programmes, and mobile app integration, it provides unmatched flexibility and ease of use for professional welders.

Key Features

  • MIG/MAG, Pulse MIG, Double Pulse MIG, MMA and TIG (Lift & HF) capability
  • Single and double pulse synergic MIG for improved weld quality and heat control
  • Full digital control system with ARM Cortex processor

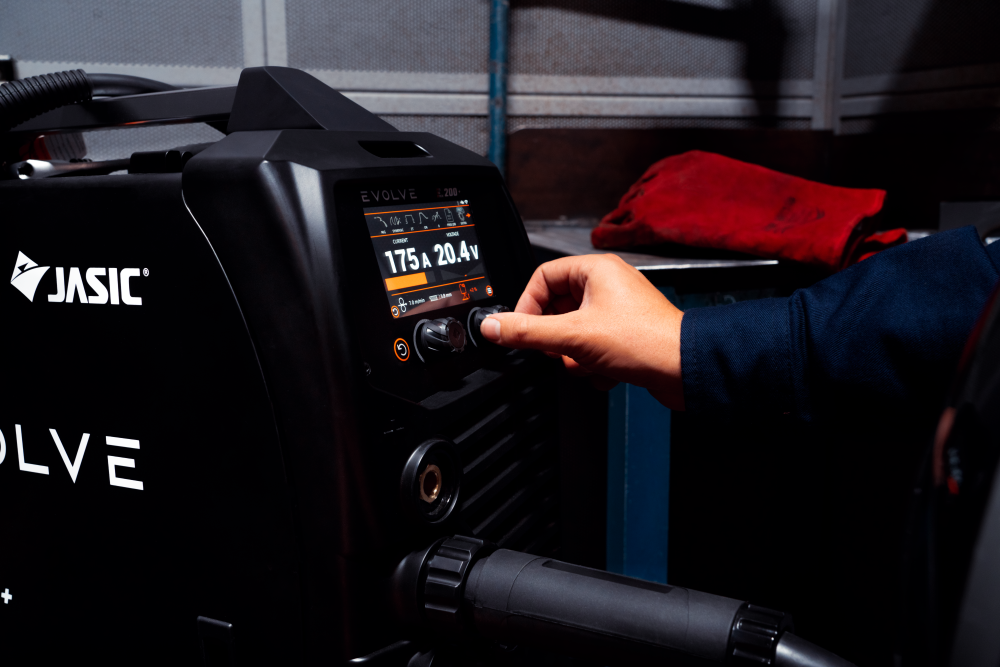

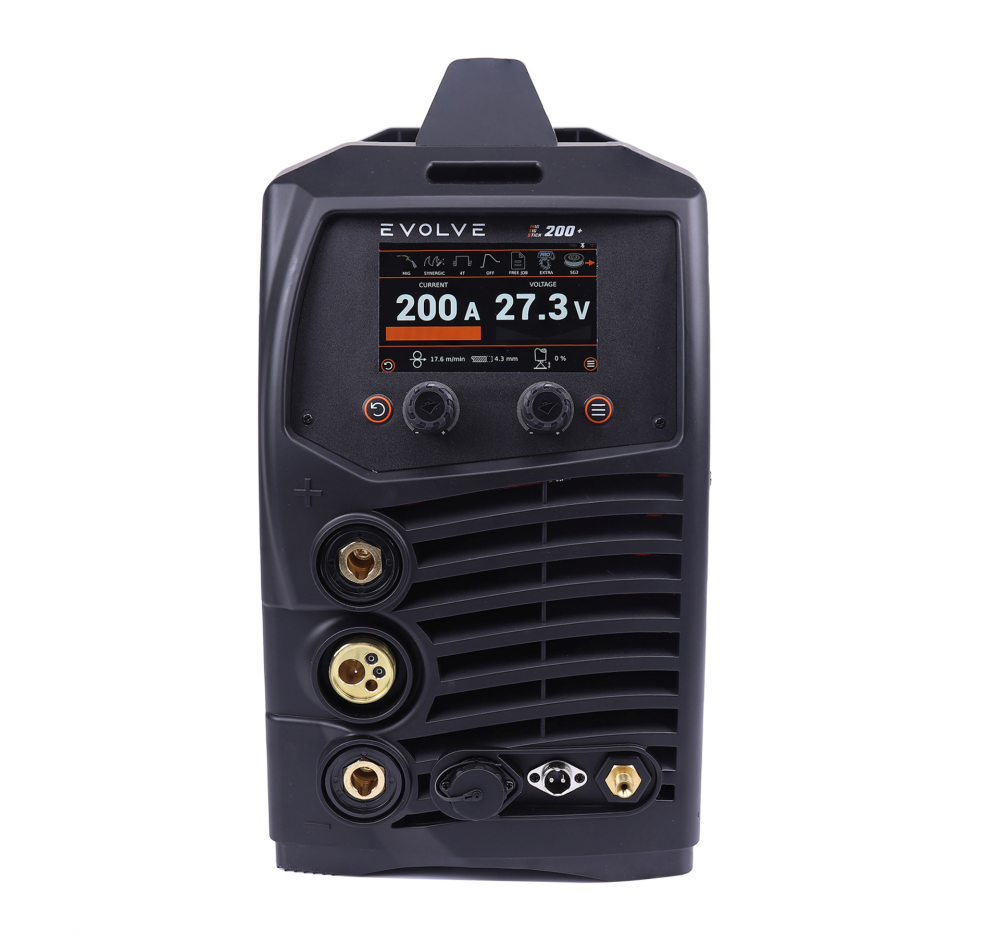

  • 5” colour LCD touchscreen with intuitive HMI interface
  • 100+ synergic programs with downloadable updates
  • 100 job memory storage for repeat work
  • High frequency DC TIG with full parameter adjustment
  • Glick function for real time current adjustment during welding
  • 4 roll wire feed system for smooth and consistent wire delivery

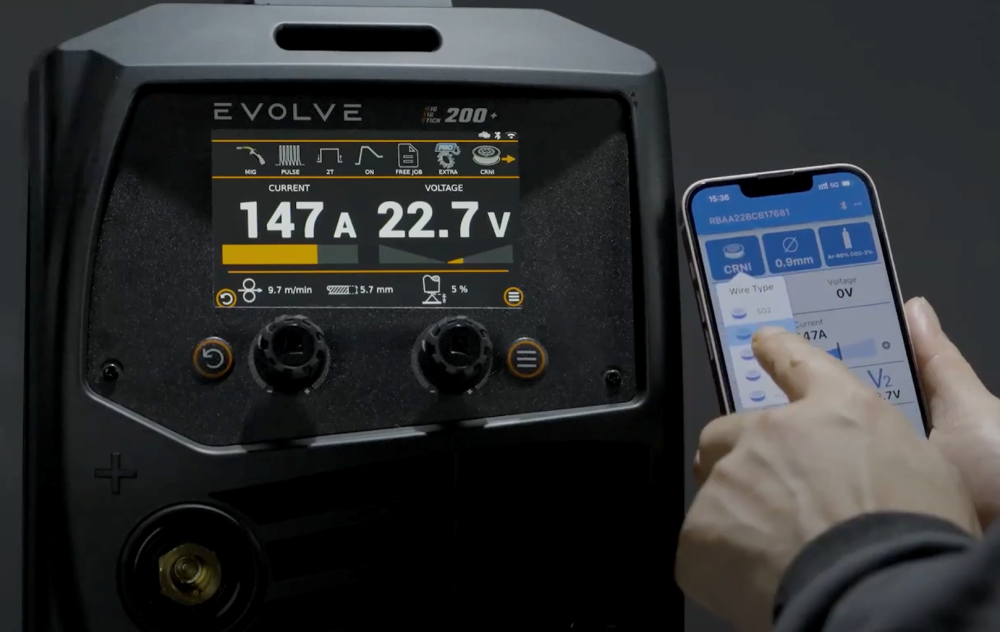

  • Wi Fi and Bluetooth connectivity with mobile app control
  • Over the air firmware updates via cloud platform
  • Fan on demand cooling and energy saving operation
  • Generator friendly (AVR compatible)

Technical Specifications

  • Input Voltage: 1 Phase AC 230V, 50/60Hz
  • MIG Output Range: 20–200A
  • MMA Output Range: 20–180A
  • TIG Output Range: 5–200A
  • Duty Cycle: approx. 25% @ 200A
  • Wire Feed System: 4 roll drive
  • Wire Size Range: 0.6–1.2mm
  • Wire Spool Size: 200mm (5kg)
  • Protection Class: IP-23S
  • Dimensions: approx. 605 × 400 × 230mm
  • Weight: approx. 17kg

What’s Included

  • EVOLVE 200 inverter power source
  • 4m digital MIG torch (4 button control)
  • 4m TIG torch
  • Earth return lead and clamp
  • Gas regulator and hose
  • V and U groove feed rollers (1.0 / 1.2mm)

Optional Accessories

  • Wireless or wired remote control systems
  • Foot pedal control for TIG welding
  • EVOLVE mobile app integration
  • Water cooling and modular upgrades
