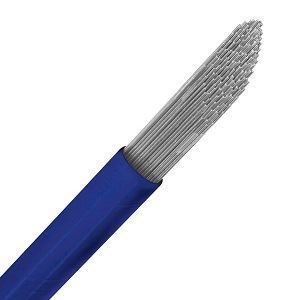

1.6mm 5356 TIG Filler Pack 2.5Kg

Stock Code: FAW00002807
Manufacturer Part No: 6011100473

Descriptions

Versatile Aluminium TIG Wire for Structural and Marine Welding

Weld Star ER 5356 is a high-strength AlMg5 aluminium TIG wire developed for welding aluminium alloys containing up to 5% magnesium. Recognised for its excellent mechanical properties and corrosion resistance, particularly in marine and offshore environments, ER 5356 is one of the most widely used aluminium filler wires globally.

This alloy also supports anodizing, making it ideal for components where appearance and corrosion resistance are both critical. For optimal performance, thicker sections should be preheated to 150°C prior to welding.

Key Features

• Popular AlMg5 alloy with high strength and weldability
• Excellent corrosion resistance in marine and industrial environments
• Suitable for components that require anodizing after welding
• Low cracking sensitivity and consistent arc characteristics
• Supplied in 1000 mm cut lengths in 2.5 kg packs

Typical Applications

• Shipbuilding and boat construction
• Bicycle and truck frames
• Automotive components and trailers
• Storage tanks and pressure vessels
• Railcar and general aluminium fabrication

Suitable Base Materials Include

• AlMg3, AlMg4, AlMg5
• AlMgSi0.5, AlMgSi1, AlMgMn
• AlZnMg1, AlZn4.5Mg1, AlMg1SiCu
• G-AlMg3Si, G-AlMg5Si, G-AlMg10
• AlSi1MgMn, AlSiMg(A)
• 3.3545, 3.3206, 3.3210, 3.2315, 3.3211, 3.4335
• EN AW 5086, 6060, 6005A, 6061, 7020, 5454
• EN AC 51300, 51400, 51100

Standards

• EN ISO 18273 – S Al 5356 (AlMg5Cr(A))
• AWS A5.10 – ER 5356

Welding Positions

Conforms to EN ISO 6947:
PA, PB, PC, PD, PE, PF, PG

Shielding Gas

Per EN ISO 14175:
• TIG: I1 (Argon), I3 (Helium)
